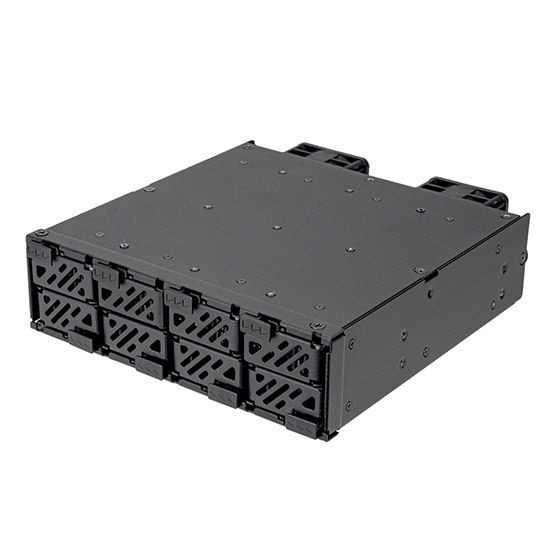

Silverstone SST-FSM08B-MS 5.25inch Bay 8 x M.2 SSD Drive Enclosure

Price:
 $289.99
MPN:
 SST-FSM08B-MS
Brand:
UPC:
 844761030155
Availability: Ships in 2 business days
.
Shipping:
 Calculated at checkout


Add to Wishlist

Click the button below to add the Silverstone SST-FSM08B-MS 5.25inch Bay 8 x M.2 SSD Drive Enclosure to your wish list.

SHARE
Pin It

Product Description

  • ​​​​​Installs into a single 5.25" expansion bay and accommodates up to eight M.2 SSDs
  • Supports PCIe NVMe (M-key) M.2 SSDs with 22mm width
  • Supports M.2 SSD lengths of 30mm / 42mm / 60mm / 80mm / 110mm
  • Tool-free M.2 SSD installation design for quick and easy installation and removal
  • Features an oversized heatsink to effectively address the thermal challenges of high-speed M.2 SSDs
  • Backplane features eight SlimSAS 4i (SFF-8654) interfaces, supporting PCIe 3.0/4.0 x4 with speeds up to 32/64Gbps
  • Independent LED indicators for monitoring drive statuses
  • Includes dual 40mm dual ball bearing fans to ensure stability and durability during long-term operation
  • Supports hot-swap functionality (NVMe hot-swap support required on the motherboard or add-in card)
Model No.
SST-FSM08B-MS
Color
Black
Material
Steel body, Stainless tray
Transfer rate
up to 32Gbps each channel (dependent on drive speed)
Application
5.25” drive bay x 1
Fan
40*20mm fan x 2

Power connector
SATA 15-Pin x 2
Drive support
PCIe NVMe M.2 SSD (NGFF) M Key x 8
Host interface
8port SlimSAS 4i (SFF-8654) connector
Support type of M.2 SSD
22x30mm, 22x42mm, 22x60mm, 22x80mm, 22x110mm
LED indicator
HDD Power LED: Blue
HDD Access: Green blinking
Dimension
146mm (W) x 42mm (H) x 168mm (D)

Extra
* Tri-mode HBA/RAID adapter cards are not supported

Other Details

MPN:
SST-FSM08B-MS
