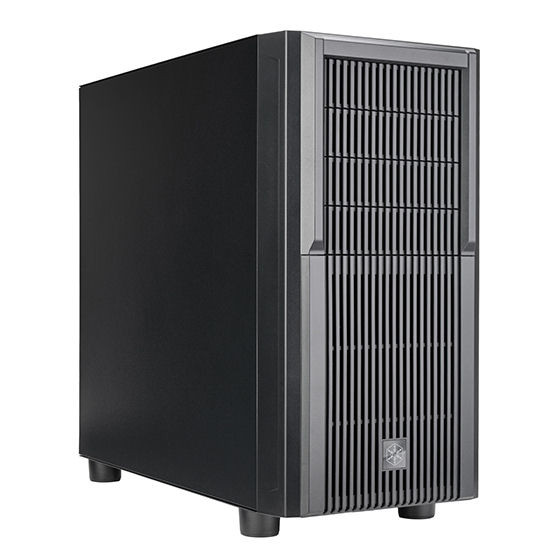

Silverstone SST-SETAX1M-B 4 x 5.25inch Bay M-ATX chassis

Price:
 $129.99
MPN:
 SST-SETAX1M-B
Brand:
UPC:
 844761030605
Condition:
 NEW
Availability: Ships in 2 business days
.
Shipping:
 Calculated at checkout


Add to Wishlist

Click the button below to add the Silverstone SST-SETAX1M-B 4 x 5.25inch Bay M-ATX chassis to your wish list.

SHARE
Pin It

Product Description

  • 4 x 5.25" expansion bays for optical drives, hot-swap cages, and other front-access devices
  • Supports 180mm front fans for exceptional airflow performance
  • Supports versatile storage options including 5.25", 3.5", and 2.5" devices
  • Supports 360mm radiators
  • Supports graphics cards up to 413mm in length and includes a dedicated GPU support bracket
  • Front I/O ports include: 1 × USB Type-C, 2 × USB 3.0, 1 × audio, and 1 × microphone
Model No.
SST-SETAX1M-B
Material
Steel, Plastic
Motherboard
Micro-ATX, Mini-ITX
Drive bay
External
  • 5.25" x 4
Internal
  • 3.5" x 1
    3.5" x 1/2.5" x 2
Cooling system
Front
  • 180mm x 1 (180mm black fan x 1 included) /140mm/120mm
    *Please ensure compatibility between 5.25" devices and cooling components before installing 120mm / 140mm fans
Rear
  • 120 x 1 (120mm black fan x 1 included)
Top
  • 120mm x 3 / 140mm x 2
    *Please ensure compatibility between 5.25" devices and cooling components before installing more than two fans
Internal
  • PSU Chamber: 120mm x 2
    *Only one 120mm fan can be installed when the GPU support bracket is mounted at the rear position
Radiator support
Front
  • 120mm / 140mm / 240mm / 280mm
    *Please ensure compatibility between 5.25" devices and cooling components before installation
Rear
  • 120mm
Top
  • 120mm / 140mm / 240mm / 280mm / 360mm
    *Please ensure compatibility between 5.25" devices and cooling components before installation
Limitation of CPU cooler
155mm (with GPU brace installed)
169mm (without GPU brace installed)
Expansion slot
5
Limitation of expansion card
Length
  • 413mm
    *Please refer to manual for GPU and front fan or radiator compatibility
Width
  • 156mm (with GPU brace installed)
    163mm (without GPU brace installed)
Power supply
PS2 (ATX)
Limitation of PSU
180mm (with bottom drive cage in rear position)
200mm (with bottom drive cage in front position)
Front I/O port
USB Type-C x 1
USB 3.0 x 2
Audio x 1
Microphone x 1
Dimension
220mm (W) x 456.3mm (H) x 483.6mm (D), 48.5 Liters
8.66" (W) x 17.96" (H) x 19.04" (D), 48.5 Liters

Other Details

MPN:
SST-SETAX1M-B
