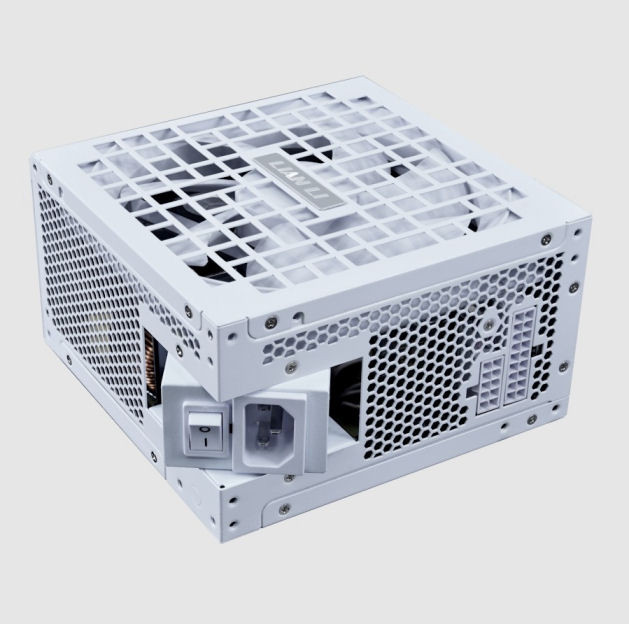

Lian Li RS1200G.WH 1200W Rotational Shift Fully Modular ATX Power Supply

Product Description

The LIAN LI RS Series PSU is a fully modular 1200W power supply featuring a unique rotatable AC input and dual-sided 24-pin outputs, allowing for cleaner cable routing in standard, and back-connect. Certified with 80 PLUS Gold, PPLP Gold, and Cybenetics Gold, it delivers reliable, energy-efficient performance. It includes optional integration with the RS HUB, a magnetic USB module, and features LIAN LI’s custom 12V-2x6 cable with thicker, low-resistance terminals for improved safety. Built with premium EPCOS or equivalent Japanese capacitors, it offers stable power delivery, a silent 135mm FDB fan with fanless mode, and soft flat cables with magnetic ties for easy cable management.

Revolutionary Dual-Sided Rotatable AC Inlet: The industry-first modular PSU design featuring a rotatable AC inlet with a 20+4P output. This innovative feature offers unparalleled convenience for building in a variety of cases. The RS Series PSU allows for a rotatable input design, enabling users to choose between traditional rear connections or a 90° side connection, making it compatible with various cases for optimized cable management.
USB 2.0 Hub: The RS Hub is compatible with EDGE GOLD PSU series and can be powered via SATA cable, featuring magnetic attachments for easy integration into your setup.
Dual-Color 12V-2x6 Cable Housing with Robust Terminals: The RS Series PSU’s Dual-Color 12V-2x6 cable ensures easy identification and accurate connections every time. The custom-developed terminals are crafted from thicker alloy and utilize a welded construction method, significantly reducing contact resistance and enhancing heat tolerance.
Effortless Cable Management: Effortless cable management with soft cables and magnetic ties ensures a clean and organized build. The soft and flat cable design has been implemented for the CPU, GPU, SATA, and PATA cables, making them easier to bend, route, and manage within tight spaces.
Gold 80 PLUS Certified Efficiency: Ensuring over 90% efficiency under typical loads. Comprehensive safety protections (OCP, OVP, OTP, etc.), and a reliable RS HUB, confirming its durability and power stability.

ATX12v Version: ATX 3.1
Efficiency: 80 PLUS Gold / Cybenetics Platinum / PPLP Gold
DC Output Cable: Full-Modular
Material: SECC
PFC: Active PFC, PF > 0.90 under full load at 115Vac, 60Hz
Input Rating: 100-240Vac 15-8A, 50-60Hz
Max. DC Output: 1200W
Combined +12v: 1200W
Combined +3.3v & +5v: 100W
Fan Spec: 135mm FDB Fan
Fan Rpm: 2400rpm
Fanless Mode: YES
Noise Level: 36.27dBA at 30℃, 100cm away from micphone to PSU
MTBF: 100,000 hrs minimum 25℃/75% Load
Protection: OCP, OVP, OTP, OOP, SCP, UVP, NLP, SIP
Working Temperature: 0-40℃
Connectors:

24/20-Pin motherboard connector(620mm) * 1pc
8 Pin CPU/ATX 12V connector(700mm) * 1pc
4+4 Pin CPU/ATX 12V connector(700mm) * 1pc
2x8/6+2 Pin PCIE connector(650mm+100mm) * 1pc
8/6+2 Pin PCIE connector(650mm) * 3pcs
12V-2X6-8 Pin connector(650mm) * 1pc
SATA connector(300+15+15+15mm) * 1pc
SATA-Y connector(375+150mm) * 1pc
SATA connector(400+150+150+150mm) * 1pc
Peripheral connector(500+150+150+150mm) * 1pc
USB 9pin-9pin(470mm)* 1pc
USB 9pin-TypeA(550mm)* 1pc
