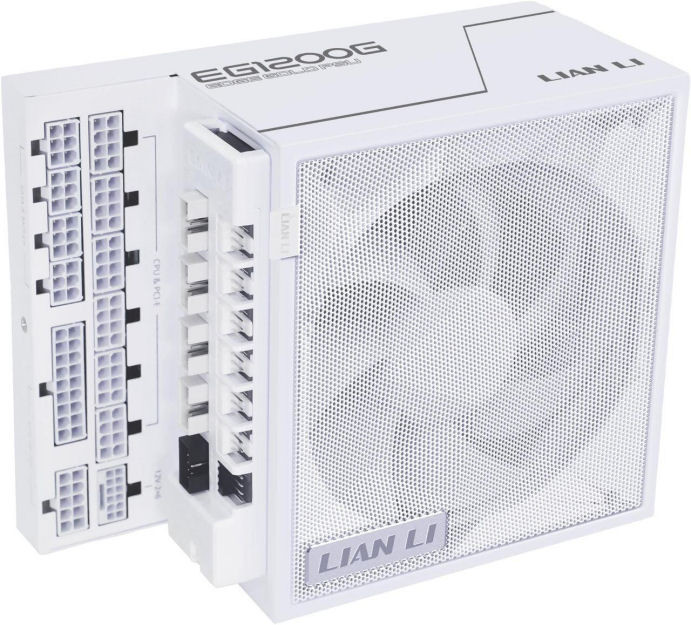

Lian Li EG1200G.WH 1200W 80 PLUS Gold White with Hub Full Modular ATX

• L-shape design tailored for dual chamber cases
• 80 PLUS Gold efficiency
• PCIe 5.1 ready with in-house R&D 12V-2×6 alloy copper soldered terminals
• Detachable USB hub with 4 internal usB 2.0 headers and 6 PWM headers, offered in 1200W and 1000W
• Removable magnetic fan dust filter
• Built with German top-end, industrial-grade EPCOS capacitors
• Fully modular braided-texture cables with pre-installed cable combs on MB/CPU/GPU connectors
THE “POWER” FOR DUAL CHAMBER CASES
The EDGE Gold PSU series features a unique L-shape design, a removable USB and fan PWM hub, longer modular cables, and a conveniently removable dust filter. Experience efficient cable management in a dual chamber or tower chassis that blends aesthetics and convenience in your PC build.
INNOVATIVE L-SHAPE DESIGN
Introducing the world’s first PSU with a detachable USB and PWM fan hub that also functions independently, and that features a removable magnetic dust filter. This unique form factor reorients the connectors outward, simplifying cable management and ensuring a clean, organized build.
MAGNETIC DUST FILTER
The magnetic mesh dust filter on top of the fan can be easily removed for regular cleaning, ensuring dust-free operation. A high porosity of 66.9% ensures ample ventilation and airflow with quiet fan operation, extending the PSU’s lifespan and reliability.
CONVENIENT CABLE MANAGEMENT
Engineered specifically for dual-chamber chassis such as the LIAN LI O11 series, the EDGE Gold PSU’s L-shape design is ideal for vertical installation in the second chamber. This outward-facing interface is more user-friendly than traditional side-mounted designs, making cable management simple and accessible for both beginners and experienced builders.

• Dimensions: (D)182 mm X (W)86 mm X (H)150 mm
• Power Supply Design: Fully modular
• Material: Steel
• Form Factor: ATX 3.1
• Certification: 80 PLUS GOLD / Cybenetics GOLD / PPLP GOLD
• Max. DC Output: 1200W
• Combined +3.3v & +5v: 120W
• Combined +12v: 1200W
• Input Voltage: 100-240Vac
• Input Frequency Range: 15-7.5A 50-60Hz
• PFC: Active PFC, PF > 0.90 under full load at 115Vac, 60Hz
• Efficiency: 91.64%MAX
• Protective Circuit: OCP/OVP/OTP/OPP/SCP/UVP
• Connectors
  • 1 x 24/20-Pin motherboard connector (620mm) x1pcs
  • 1 x 8/4+4 Pin CPU/ATX 12V connector (750mm) x1pcs
  • 1 x 4+4 Pin CPU/ATX 12V connector (750mm) x1pcs
  • 1 x 6+2 Pin PCle connector (650mm + 100mm) x1pcs
  • 4 x SATA connector (300mm-15mm-15mm-15mm) x 1pcs
  • 4 x Y Type SATA connector (375mm-150mm-150mm-150mm) x1pcs
  • 4 x SATA connector (400mm-150mm-150mm-150mm) x 1pcs
  • 4 x 4-Pin Peripheral connector (500mm-150mm-150mm- 150mm) x1pcs
  • 1 x 12V - 2X6 450W connector (650mm) x1pcs
  • 1 x 12V - 2X6 -2*8 600W connector (650mm) x1pcs
  • USB*9pin - USB*9pin connector (470mm) x 1pcs
  • USB*9pin -Type A connector (550mm) x 1pcs
• Fan Type: 120mm FDB Fan
• Fan Speed: 2400RPM
• Fan Noise Level: 39.3dBA
