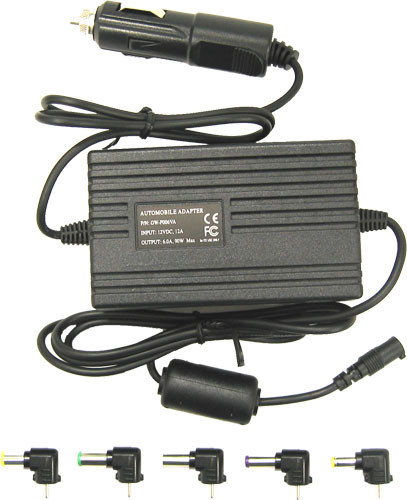

XTERASYS GW-P006VA Universal Notebook PC DC/DC Power Adaptor

OVERVIEW

There are six (6) different output voltages, 15, 16, 18, 19, 20 and 24 VDC, for different models of notebooks on the market. Simply adjust to the correct voltage of your notebook, and connect using one of the supplied five (5) connectors.

CONNECTOR SIZE

• 4.75 (O.D.) X 1.7 (I.D.) mm - color: yellow

• 5.0 (O.D.) X 2.1 (I.D.) mm - color: purple

• 5.5 (O.D.) X 2.5 (I.D.) mm - color: white

• 6.3 (O.D.) X 3.0 (I.D.) mm - color: green

• EIAJ 6.5 (O.D.) X 4.3 (I.D.)  X 1.4 (PIN) mm - color: yellow

POWER

• Input: 12 VDC, 12 A

• Output: 15~24 VDC, 6.0A, 90W Max

SIZE & WEIGHT

• Size: 9.5 x 5.5 x 4 cm

• Weight: 340g
