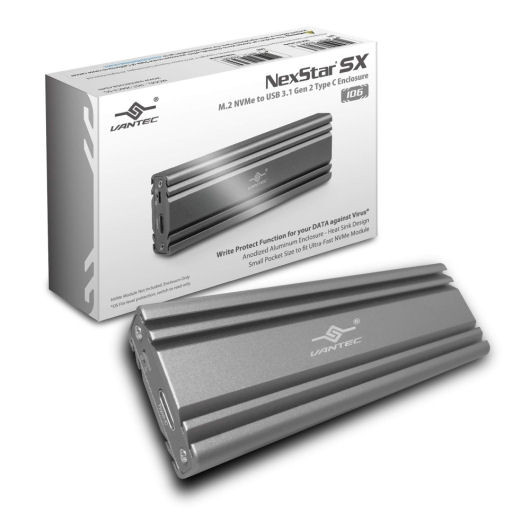

This Latest NVMe enclosure with USB 3.1 Gen 2 Type C interface is a new additional to the NexStar SX Family with the signature write protect function. This Anodized Aluminum crafted Enclosure with Heat Sink on the enclosure keep the NVMe module cooler to run at top speed. Designed with great features like Pocket size, USB 3.1 Gen 2 USB C native, UASP, Plug and Ready plus all the great features you can expect from Vantec Storage. This M.2 NVMe to USB 3.1 Gen 2 Type C Enclosure is small, but you can easily add a 2TB (maybe more later) M.2 NVMe module into it. This Heat Sink Enclosure design gives it the beauty, strength, durability, and heat dissipation properties. Lastly, of course, we cannot overlook the expected Speed of a fast NVMe module with USB 3.1 Gen 2 enclosure
Model: NST-206C3-SG
M.2 size: Length support 2230, 2242, 2260, 2280
M.2 Support: M.2 NVMe (PCIe v3.0 x2 or PCIe v3.0 x4)
Internal Interface: 1 x M.2 NVMe (PCIe v3.0 x2 or PCIe v3.0 x4)
External Interface: Standard USB 3.1 Gen 2 USB C
Enclosure Material: Anodized Aluminum with Heat Sink
Power Supply: Bus-powered, no external power supply needed
USB cable connector: USB C to C / C to A
USB cable length: 300mm / 11.8 inches
Dimensions: 103 x 36 x 16 mm / 4.0x 1.4 x 0.6 inches
Weight: 90 grams / 3.2 oz.
OS Support: Mac OS X 10.10 or higher, Windows 10/11, Latest Chrome OS, Latest Linux kernel
Environmental:
Operating Temperature 0 ℃ to +45℃
Operating Humidity 10% to 85 % RH (no condensation)
Storage Temperature -10℃ to +70℃
Storage Humidity 5% to 90% RH (no condensation)
System Requirements:
• USB Type C port
• Latest OS support for USB C
• M.2 NVMe module with “M” Key only
What's Included: M.2 NVMe SSD to USB 3.1 Gen 2 Type C Enclosure, USB C to C / C to A cable, Screw Driver, Heat Transfer Plate, Thermal Pad, Screws set, Quick Guide
