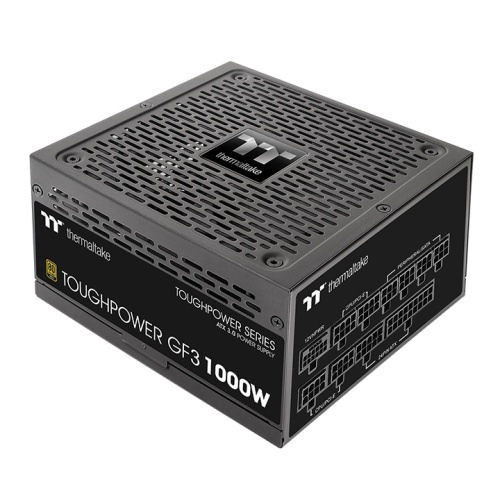

Thermaltake PS-TPD-1000FNFAGU-4 Toughpower GF3 1000W Gold - TT Premium Edition

Price:

$219.00

MPN:

PS-TPD-1000FNFAGU-4

Brand:

THERMALTAKE

UPC:

841163084090

Availability: Ships in 2 business days

Shipping:

Calculated at checkout

Add to Wishlist

Product Description

Designed with a native PCIe 12+4pin connector, the Toughpower GF3 series is compatible with Intel ‘s ATX 3.0 specification and is built for next-gen PCIe 5.0 graphics cards.

The wattage marked on 12VHPWR’s connector is the recommended wattage. (Ref. Intel design guideline) The native 16 PIN (12VHPWR) PCIe connector of GF3 1000W can deliver up to 600W for PCIe 5.0 graphics cards.

Note: Recommended wattage is an estimation of system power demand. Actual power demands may vary based on specific components, usage, and many other factors.

P/N	PS-TPD-1000FNFAGU-4
WATTS	1000W
MODEL	TPD-1000AH3FCG
MAX. OUTPUT CAPACITY	1000W
COLOR	Black
DIMENSION ( W / H / D )	150mm(W) x 86mm(H) x 160mm(D)
WEIGHT	1.72 KG
PFC (POWER FACTOR CORRECTION)	Active PFC
POWER GOOD SIGNAL	100-150 msec
HOLD UP TIME	> 17msec at 100% of full load
INPUT CURRENT	13.0A / 6.5A
INPUT FREQUENCY RANGE	50/60Hz
INPUT VOLTAGE	100V – 240V~
OPERATING TEMPERATURE	0°C to + 40°C
OPERATING HUMIDITY	20% to 90%,non-condensing
STORAGE TEMPERATURE	-20°C to + 70°C
STORAGE HUMIDITY	5% to 95%, non-condensing
COOLING SYSTEM	13.5cm fluid bearing fan
EFFICIENCY	Meet 80 PLUS®Gold at 115Vac input.
MTBF	100,000 hrs minimum
SAFETY APPROVAL	CE/UKCA/cTUVus/TÜV/FCC/IC/BSMI/EAC/CB/CCC
PROTECTION	OCP, OVP, UVP, OPP, SCP, OTP
PCI-E CONNECTOR	PCIe 6+2pin x 4 PCIe 12+4pin x 1
