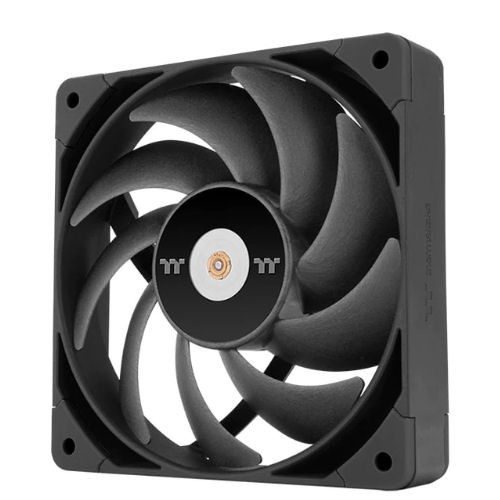

P/N | CL-F140-PL14BL-A |
---|---|
DIMENSION | 140 x 140 x 25 mm |
FAN STARTED VALTAGE | 12 V |
STARTED VOLTAGE | 6 V |
RATED CURRENT | 0.36 A |
POWER INPUT | 4.32 W |
FAN SPEED | PWM 500~2000 R.P.M With L.N.C PWM 500~1500 R.P.M |
STATIC PRESSURE | 3.57 mm-H2O With L.N.C 2.18 mm-H2O |
AIR FLOW | 119.6 CFM With L.N.C 87.6 CFM |
NOISE | 31.6 dB-A With L.N.C 24.5 dB-A |
BEARING TYPE | Hydraulic Bearing Gen.2 |
LIFE EXPECTATION | 40,000 hrs,25℃ |
CONNECTOR | 4 PIN PWM |
