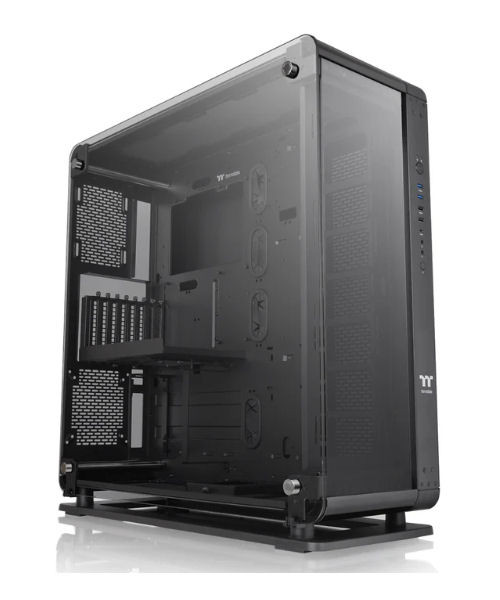

The Core P8 TG is a transformable E-ATX Full Tower Chassis that can be either used as a closed or open styled case with Tt LCS Certification.
P/N | CA-1Q2-00M1WN-01 |
---|---|
SERIES | Core |
MODEL | Core P8 TG |
CASE TYPE | Full Tower |
DIMENSION (H X W X D) | 660 x 260 x 626 mm (26 x 10.24 x 24.65 inch) |
NET WEIGHT | 22.6 kg / 49.8 lbs |
SIDE PANEL | Tempered Glass x 3 (4mm thickness) |
COLOR | Black |
MATERIAL | SPCC |
DRIVE BAYS -ACCESSIBLE -HIDDEN |
1 x 2.5’’ (with Pump Bracket) 3 x 3.5’’ or 6 x 2.5’’ (With HDD Bracket) |
EXPANSION SLOTS | 8 |
MOTHERBOARDS | 6.7” x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX), 12” x 9.6” (ATX), 12” x 13”(E-ATX) |
I/O PORT | 1 x Type-C, 2 x USB 3.0, x 2 USB 2.0, 1 x HD Audio |
PSU | Standard PS2 PSU (optional) |
FAN SUPPORT | Front: 4 x 120mm or 3 x 120mm or 2 x 120mm or 1 x 120mm 3 x 140mm or 2 x 140mm or 1 x 140mm Top: 4 x 120mm or 3 x 120mm or 2 x 120mm or 1 x 120mm 3 x 140mm or 2 x 140mm or 1 x 140mm Rear: 1 x 120mm or 2 x 120mm , Right: 4 x 120mm or 3 x 120mm or 2 x 120mm or 1 x 120mm 3 x 140mm or 2 x 140mm or 1 x 140mm Bottom: 4 x 120mm or 3 x 120mm or 2 x 120mm or 1 x 120mm 3 x 140mm or 2 x 140mm or 1 x 140mm |
RADIATOR SUPPORT | Front: 1 x 480mm or 1 x 360mm or 1 x 240mm or 1 x 120mm 1 x 420mm or 1 x 280mm or 1 x 140mm Top: 1 x 360mm or 1 x 240mm or 1 x 120mm 1 x 280mm or 1 x 140mm Right: 1 x 480mm or 1 x 360mm or 1 x 240mm or 1 x 120mm 1 x 420mm or 1 x 280mm or 1 x 140mm Bottom: 1 x 240mm or 1 x 120mm (With P5 DP-D5 ) , |
CLEARANCE | CPU cooler height limitation: 180mm VGA length limitation: 280mm (With Reservoir) 320mm (Without Reservoir) PSU length limitation: 200mm |
