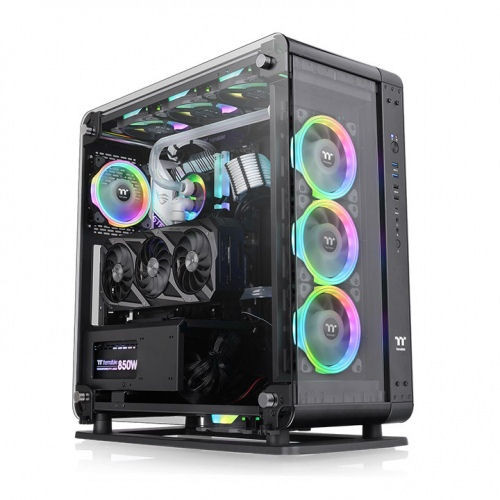

Thermaltake CA-1V2-00M1WN-00 Core P6 Tempered Glass Mid Tower Chassis

P/N
    CA-1V2-00M1WN-00
Series
    Core
Model
    Core P6 TG
Case Type
    Mid Tower
Dimension (H x W x D)
    565 x 255 x 530mm
(22.2 x 10 x 20.9 inch)
Net Weight
    17.84 kg / 39.33 lbs.
Side Panel
    4mm Tempered Glass x 3
Color
    White
Material
    SPCC
Cooling System
    -
Drive Bays
-Accessible
-Hidden
    4 x 3.5” or 8 x 2.5”
Expansion Slots
    7 (Rotatable Patented Design)
Motherboards
    6.7” x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX),
12” x 9.6” (ATX), 12” x 10.5”(CEB)
I/O Port
    USB 3.2 (Gen 2) Type-C x 1, USB 3.0 x 2, USB 2.0 x 2, HD Audio x 1
PSU
    Standard PS2 PSU (optional)
Fan Support
    Front:
3 x 120mm, 2 x 120mm, 1 x 120mm
2 x 140mm, 1 x 140mm
Top:
3 x 120mm, 2 x 120mm, 1 x 120mm
2 x 140mm, 1 x 140mm
Rear:
1 x 120mm
Right (M/B Side):
3 x 120mm, 2 x 120mm, 1 x 120mm
2 x 140mm, 1 x 140mm
Bottom:
3 x 120mm, 2 x 120mm or 1 x 120mm
2 x 140mm, 1 x 140mm
Radiator Support
    Front:
1 x 360mm, 1 x 240mm, 1 x 120mm
1 x 280mm, 1 x 140mm
Top:
1 x 360mm, 1 x 240mm, 1 x 120mm
1 x 280mm, 1 x 140mm
Rear:
1 x 120mm
Right (M/B Side):
1 x 360mm, 1 x 240mm, 1 x 120mm
1 x 280mm, 1 x 140mm
Bottom:
1 x 240mm, 1 x 120mm
Clearance
    CPU cooler height limitation:
180mm
VGA length limitation:
300mm (With Reservoir)
400mm (Without Reservoir)
430mm (With Radiator)
458mm (Without Radiator)
PSU length limitation:
200mm
