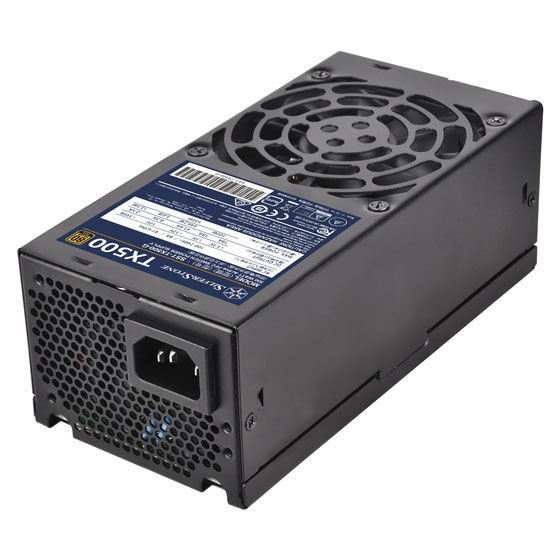

Silverstone SST-TX500-G 500W Standard TFX 80 PLUS Gold Power Supply

Price:
 $179.99
MPN:
 SST-TX500-G
Brand:
UPC:
 844761020453
Availability: Ships in 2 business days
.
Shipping:
 Calculated at checkout


Click the button below to add the Silverstone SST-TX500-G 500W Standard TFX 80 PLUS Gold Power Supply to your wish list.

SHARE

Product Description

■ Support standard TFX form factor

■ 500W continuous power output at 50°C operating temperature rated for 24/7 operation

■ High efficiency with 80 PLUS Gold certification

■ Silent running 80mm fan with 18 dBA minimum

■ Multiple protection circuitry

■ Single PCI-E 6+2pin connectors support



Model (on safety)
SST-TX500-G
Color
black (lead-free paint)
Combined +3.3V & +5V
100W
Combined +12V
499.2W
Input Voltage
90 ~ 264 Vrms
Input Frequency Range
47Hz ~ 63Hz
PFC
Active PFC (PF>0.9 at full load)
Efficiency
87% ~ 90% (at 20% ~ 100% loading)
MTBF
100,000 hours
Operating temperature
0 ~ 50°C
Protection
Over current protection
Over power protection
Over voltage protection
Short circuit protection
Under voltage protection
Over temperature protection
Connectors
1 x 24 / 20-Pin motherboard connector (350mm)
1 x 8 / 4-Pin EPS / ATX 12V connector (450mm)
2 x 8 / 6-Pin PCIE connector (350mm / 150mm)
4 x SATA connector ("350mm / 150mm" x 2)
2 x 4-Pin Peripheral connector (350mm / 150mm)
2 x 4-Pin Peripheral and 1 x 4-Pin Floppy adapter connector (350mm / 150mm / 150mm)
Cooling System
Single 80mm silent HYB fan
Form factor
Noise Level
18 dBA minimum
Dimension
85mm (W) x 65mm (H) x 175mm (D)
3.35" (W) x 2.56" (H) x 6.89" (D)
Weight
1.38 kg
Certification
80 PLUS Gold

Other Details

MPN:
SST-TX500-G
