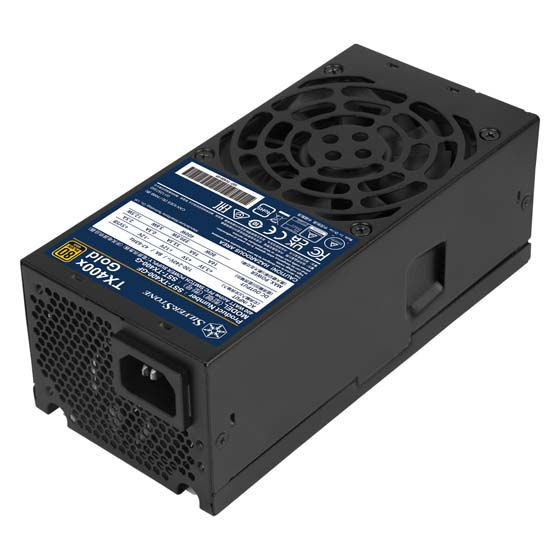

Silverstone SST-TX400-GF 80 PLUS Gold 400W TFX Power Supply

Price:
 $109.99
MPN:
 SST-TX400-GF
Brand:
UPC:
 844761030179
Availability: Ships in 2 business days
.
Shipping:
 Calculated at checkout


Add to Wishlist

Click the button below to add the Silverstone SST-TX400-GF 80 PLUS Gold 400W TFX Power Supply to your wish list.

SHARE
Pin It

Product Description

  • Support standard TFX form factor
  • 400W continuous power output at 40°C operating temperature rated for 24/7 operation
  • High efficiency with 80 PLUS Gold certification
  • Silent running 80mm fan with 18 dBA minimum
  • Multiple protection circuitry
  • Single PCI-E 6+2pin connectors support
Product No.
SST-TX400-GF
Model (safety certification)
SST-TX400-G
Color
Black (lead-free paint)
Max. DC Output
400W
Power density
413.7 W/L
Load Range
Output +3.3V +5V +12V1 +5VSB -12V
Max.(Amps) 16A 16A 33.3A 2.5A 0.3A
Min.(Amps) 0A 0A 0A 0A 0A
Range (%) ±5% ±5% ±5% ±5% ±5%
Line Reg.(%) ±1% ±1% ±1% ±1% ±1%
Ripple(mVp-p) 50mV 50mV 120mV 50mV 120mV
Combined +3.3V & +5V
80W
Combined +12V
399.6W
Input Voltage
90 ~ 264 Vrms
Input Frequency Range
47Hz ~ 63Hz
PFC
Active PFC（PF>0.9 at full load）
Efficiency
87% ~ 90% (at 20% ~ 100% loading)
MTBF
100,000 hours
Operating temperature
0°C ~ 40°C
Protection
Over power protection
Over current protection
Over voltage protection
Short circuit protection
Under voltage protection
Over Temperature protection
Connectors
1 x 24/20-Pin motherboard connector
1 x 8 / 4-Pin EPS / ATX 12V connector
2 x 8 / 6-Pin PCIe connectors
6 x SATA connector
2 x 4-Pin Peripheral connector
1 x 4-Pin Floppy adapter connector
Cooling System
Single 80mm silent HYB fan
Noise Level
18 dBA min.
Certification
80 PLUS Gold
Form factor
TFX
Dimension
85mm (W) x 65mm (H) x 175mm (D)
3.35" (W) x 2.56" (H) x 6.89" (D)

Other Details

MPN:
SST-TX400-GF
