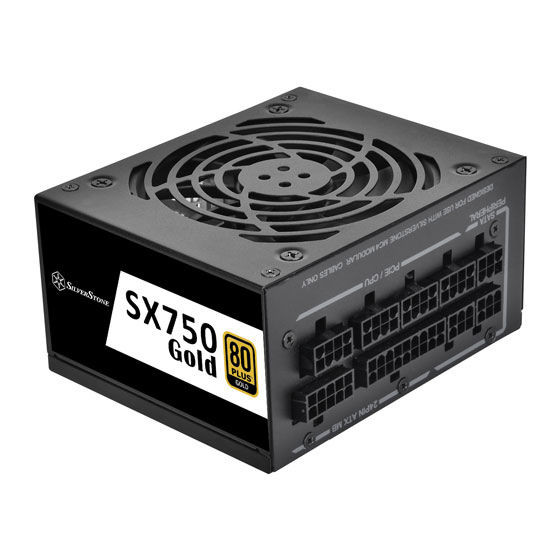

Silverstone SST-SX750-G 80 PLUS Gold 750W SFX Fully Modular Power Supply

Price:
 $189.99
MPN:
 SST-SX750-G
Brand:
UPC:
 844761023829
Availability: Ships in 2 business days
.
Shipping:
 Calculated at checkout


Add to Wishlist

Click the button below to add the Silverstone SST-SX750-G 80 PLUS Gold 750W SFX Fully Modular Power Supply to your wish list.

SHARE
Pin It

Product Description

￭ Standard SFX form factor

￭ Silent 92mm HYB fan

￭ All Japanese electrolytic capacitors

￭ Class-leading single +12V rail

￭ Strict ±3% voltage regulation and low ripple & noise

￭ 100% modular cables

￭ All cables with flexible flat arrays

￭ 180° angled SATA connectors designed for stack mounted hard drives



Product No.
SST-SX750-G
Max. DC Output
750W
Power density
945W per liter
Load Range
Output
 +3.3V +5V +12V +5VSB -12V
Max.(Amps)
 20A 20A 62.5A 2.5A 0.3A
Min.(Amps)
 0A 0A 0A 0A 0A
Range (%)
 ±5% ±5% ±3% ±5% ±10%
Line Reg.(%)
 ±1% ±1% ±1% ±1% ±1%
Ripple(mVp-p)
 50mV 50mV 80mV 50mV 60mV
Model (safety certification)
SST-SX0750MCGD-A
Color
Black（Lead-Free Paint）
Combined +3.3V & +5V
120W
Combined +12V
750W
Input Frequency Range
47Hz ~ 63Hz
PFC
Active PFC (PF>0.9 at full load)
Efficiency
87% ~ 90% (at 20% ~ 100% loading)
MTBF
100,000 hours
Operating temperature
0°C ~ 40°C
Protection
Over Current Protection
Over Power Protection
Over Voltage Protection
Short Circuit Protection
Over Temperature Protection
Under Voltage Protection
No load operation
Connectors
1 x 24 / 20-Pin motherboard connector
2 x 8 / 4-Pin EPS / ATX 12V connectors
1 x 8-Pin EPS / ATX 12V connectors
4 x 8 / 6-Pin PCIe connectors
8 x SATA connectors
3 x 4-Pin Peripheral connectors
1 x 4-Pin Floppy connector
※ SX750 Gold is not compatible with PP05-E and PP06 cables.
Cooling System
Silent 92mm HYB fan
Form factor
Noise Level
18 dBA minimum
Dimension
125 mm (W) x 63.5 mm (H) x 100 mm (D)
4.92" (W) x 2.5" (H) x 3.94" (D)
Weight
1.49 kg
Certification
80 PLUS Gold

Other Details

MPN:
SST-SX750-G
