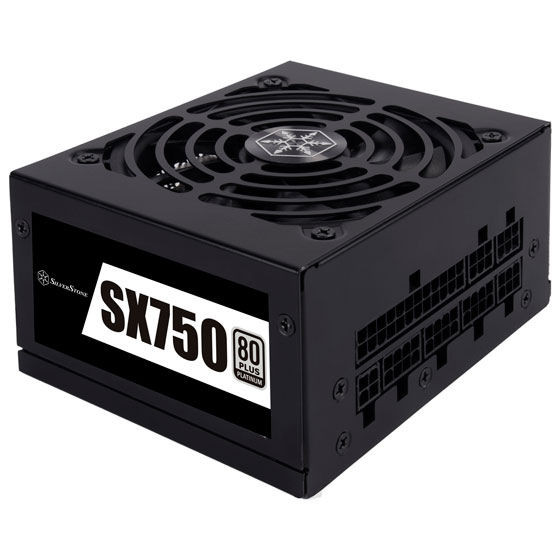

Silverstone SST-SX750-PT 80 PLUS 750W Platinum Modular SFX ATX12V v2.4 92mm Fan Power Supply

Price:
 $179.99
MPN:
 SST-SX750-PT
Brand:
UPC:
 844761020200
Availability: Ships in 2 business days
.
Shipping:
 Calculated at checkout


Click the button below to add the Silverstone SST-SX750-PT 80 PLUS 750W Platinum Modular SFX ATX12V v2.4 92mm Fan Power Supply to your wish list.

SHARE

Product Description

■ Standard SFX form factor

■ Silent running 92mm dual ball bearing fan with minimum 0dBA

■ All Japanese capacitors

■ High efficiency with 80 PLUS Platinum certification

■ Class-leading single +12V rail

■ Strict ±3% voltage regulation and low ripple & noise

■ 100% modular cables

■ All cables with flexible flat arrays



Model (on safety)
SST-SX750-PT
Color
Black(Lead-Free Paint)
Combined +3.3V & +5V
120W
Combined +12V
750W
Input Voltage
90V ~ 264V
Input Frequency Range
47Hz ~ 63Hz
PFC
Active PFC(PF>0.9 at full load)
Efficiency
89% ~ 92% at 20% ~ 100% loading
MTBF
100,000 hours
Operating temperature
0°C ~ 40°C
Protection
Over Power Protection
Over Voltage Protection
Short Circuit Protection
Over Temperature Protection
Over Current Protection
Connectors
1 x 24 / 20-Pin motherboard connector(300mm)
1 x 8 / 4-Pin EPS / ATX 12V connector(400mm)
2 x 8 / 4-Pin EPS / ATX 12V connector(400mm / 150mm)
4 x 8 / 6-Pin PCIE connector(”400mm / 150mm” x 2)
8 x SATA connector(”300mm / 200mm / 100mm / 100mm” x 2)
3 x 4-Pin Peripheral connector(300mm / 200mm / 200mm)
Cooling System
Single 92mm dual ball bearing fan
Form factor
Noise Level
0 dBA minimum
Dimension
125 mm (W) x 63.5 mm (H) x 100 mm (D)
4.92" (W) x 2.5" (H) x 3.94" (D)
Weight
1.01 Kg
Certification
80 PLUS Platinum

Other Details

MPN:
SST-SX750-PT
