Introduction

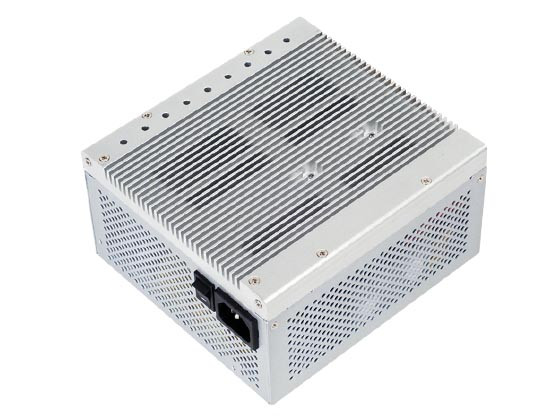

As a step-up from the venerable ST30NF, SilverStone¡¯s first fan-less power supply, the newer Nightjar series ST40NF achieves its continuous power output up to 400W. This is the power level that has become the mainstream application for a new generation of silent computers. By again combining superior server-level components and advanced technical design, the ST40NF has high reliability and efficiency. It can maintain 82%~86% efficiency at 20%~100% loading, earning it 80 PLUS Bronze certification. Coupled with single PCI-E 8 pin connector and dual PCI-E 6pin connectors, the ST40NF can also support high-end graphics cards if needed. For silent enthusiasts or audio/video professionals, getting this power supply will certainly be one of the most important upgrade in completing a truly silent computing environment.
Special Feature
Fan-less thermal solution, 0 dBA acoustics.
Efficiency 82%~86% at 20%~100% loading with 80 PLUS Bronze certification
400W continuous power output
Strict ¡¾3% voltage regulation
Single PCI-E 8pin and dual PCI-E 6pin support High-end GPU
Aluminum construction
Server-level components
Support ATX 12V 2.3 & EPS 12V
Active PFC
| Model No. |
SST-ST40NF |
| Max. DC Output |
400W |
| Load Range |
|
|
+3.3V |
+5V |
+12V1 |
+12V2 |
+12V3 |
+12V4 |
+5VSB |
-12V |
-5V |
|
Max.(Amps) |
20A |
14A |
27A |
/ |
/ |
/ |
2.5A |
0.5A |
/ |
|
Peak (Amps) |
/ |
/ |
31.5A |
/ |
/ |
/ |
3.5A |
/ |
/ |
|
Min.(Amps) |
0A |
0A |
0.2A |
/ |
/ |
/ |
0A |
0A |
/ |
|
Range (%) |
+/-3% |
+/-3% |
+/-3% |
/ |
/ |
/ |
+/-5% |
+/-10% |
/ |
|
Line Reg.(%) |
+/-1% |
+/-1% |
+/-1% |
/ |
/ |
/ |
+/-1% |
+/-1% |
/ |
|
Ripple(mVp-p) |
50mV |
50mV |
120mV |
/ |
/ |
/ |
50mV |
120mV |
/ | |
| combined +3.3, +5V |
130W Max |
| combined +12V |
324W(27A) |
| Input Voltage |
99V ~ 264V |
| Input Frequency Range |
47Hz ~ 63Hz |
| PFC |
Active PFC (PF>0.99 at full load) |
| Efficiency |
82%~86% at 20%~100% loading |
| MTBF |
100,000 hours at 25¡ÆC (at full load) |
| Operating temperature |
0 ~ 40¡ÆC |
| Protection |
Over current protection, Over power protection, Over voltage protection, Short circuit protection |
| Connectors |
1 x 24 / 20-Pin Motherboard connector.£¨550mm£© 1 x 8 / 4-Pin EPS / ATX 12V connector.£¨550mm£© 1 x 6-Pin PCIE connector.£¨500mm / 150mm£© 1 x 8 / 6-Pin PCIE connector.£¨500mm£© 6 x SATA connector.£¨500mm / 150mm / 150mm£© 6 x 4-Pin Peripheral connector.£¨500mm / 250mm / 150mm£© 2 x 4-Pin Floppy connector.£¨500mm / 250mm / 150mm / 150mm£© |
| Color |
Silver |
| Cooling System |
Fan Less thermal solution |
| Noise Level |
0 dBA |
| Dimension |
150 mm (W) x 86 mm (H) x 160 mm (D) |
| Weight |
3.0 kg |
| Certification |
80 PLUS Bronze |
| Other |
|
