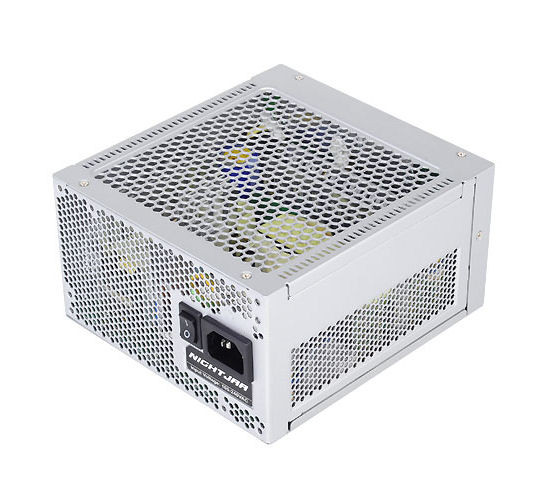

Silverstone SST-NJ520 Nightjar 520W 80 PLUS Platinum ATX Fanless Power Supply

Price:
 $179.00
MPN:
 SST-NJ520
Brand:
UPC:
 844761011031
Condition:
 NEW
Availability: Ships in 2 business days
Ships in 2 business days
Shipping:
 Calculated at checkout


Sorry but this item is currently unavailable.

Please check back at a later stage.

Click the button below to add the Silverstone SST-NJ520 Nightjar 520W 80 PLUS Platinum ATX Fanless Power Supply to your wish list.

SHARE

Product Description

  • Fan-less thermal solution, 0 dBA acoustics
  • High efficiency with 80 PLUS Platinum certification
  • 100% modular cables
  • Strict ±2% voltage regulation and low ripple & noise
  • 24/7 continuous power output with 40¡É operating temperature
  • Class-leading single +12V rail
  • PCI-E 8pin and PCI-E 6pin connectors support
Model No.
SST-NJ520
Max. DC Output
520W
Load Range
  +3.3V +5V +12V +5VSB -12V
Max.(Amps)
20A 20A 43A 2.5A 0.5A
Peak (Amps)
/ / / / /
Min.(Amps)
0A 0A 0A 0A 0A
Range (%)
±2% ±2% ±2% ±5% ±10%
Line Reg.(%)
±1% ±1% ±1% ±1% ±2%
Ripple(mVp-p)
50mV 50mV 120mV 50mV 120mV
combined +3.3, +5V
100W
combined +12V
516W
Input Voltage
90V ~ 264V
Input Frequency Range
47Hz ~ 63Hz
PFC
Active PFC (PF>0.99 at full load)
Efficiency
89%~92% at 20%~100% loading
MTBF
100,000 hours
Operating temperature
0 ~ 40°C
Protection
Over Current Protection
Over Power Protection
Over Voltage Protection
Over Temperature Protection
Short Circuit Protection
No Load Situation
Connectors
1 x 24 / 20-Pin motherboard connector£¨600mm£©
1 x 8 / 4-Pin EPS / ATX 12V connector£¨650mm£©
2 x 8 / 6-Pin PCIE connector£¨550mm / 100mm£©
4 x SATA connector£¨400mm / 120mm / 120mm / 120mm£©
2 x SATA connector£¨300mm / 120mm£©
3 x 4-Pin Peripheral connector £¨400mm / 120mm / 120mm£©
2 x 4-Pin Peripheral connector £¨300mm / 120mm£©
1 x 4-Pin Floppy connector£¨100mm£©
¡Ø NJ520 is not compatible with PP05, PP05-E and PP06 cables.
Color
Silver
Cooling System
Fan Less thermal solution
Noise Level
0 dBA
Dimension
150 mm (W) x 86 mm (H) x 160 mm (D)
Form factor
Certification
80 PLUS Platinum

Other Details

MPN:
SST-NJ520
