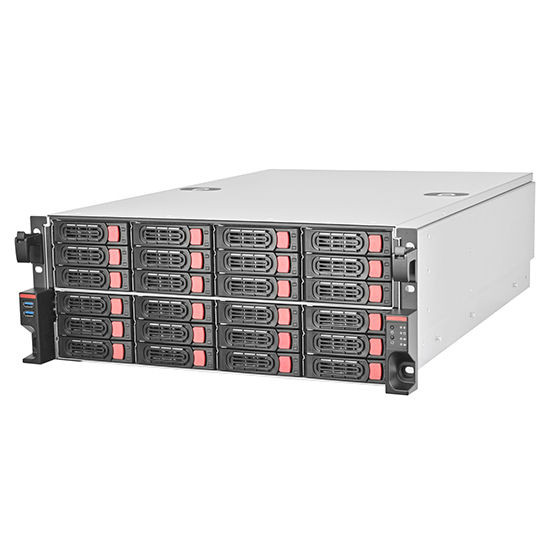

Silverstone SST-RM43-324-RS 4U 24Bay 2.5/3.5inch HDD/SSD Rackmount Storage Server Chassis

Price:

$1,099.00

MPN:

SST-RM43-324-RS

Brand:

SILVERSTONE

UPC:

844761028565

Shipping:

Calculated at checkout

Add to Wishlist

Product Description

Backplane support for 24 port SAS / SATA drives and 12 Gb/s Mini-SAS HD SFF-8643 + SGPIO
Supports twenty-four 2.5"/3.5" SAS/SATA HDD/SSD hot-swap trays
Ball bearing sliding rail included for simple server rack integration
Includes three 120mm x 38mm hot-swappable PWM fans
Auto lock handle for convenient fixation of chassis into rack cabinet
Supports ATX (PS2) / mini-redundant PSU/2U redundant^[1]
Supports E-ATX or SSI-EEB motherboards
Supports 7 standard PCI / PCIe slots
Independent drive status LED

Model No.

SST-RM43-324-RS

Chassis form factor

Motherboard

SSI-EEB, SSI-CEB, Extended ATX, ATX, Micro-ATX, Mini-ITX

Main metal thickness

1.0mm ~ 1.2mm

HDD backplane

backplane

24 ports SAS / SATA to Mini-SAS HD SFF-8643 x 6 with SGPIO

power connector

4-Pin peripheral x 12

interface

SAS III / II / I, SATA III / II / I

Drive Support

External

3.5" hot-swap x 24

Cooling system

Rear

80mm x 2 fan slots

Internal

Hot-swap 120 x 38mm PWM ball bearing fan x 3

Limitation of CPU cooler

148mm

Expansion Slot

Limitation of expansion card

Length 345mm
Width 154mm

Power Supply

ATX (PS2) / Mini Redundant / 2U Redundant ^[1]

Max. supported weight

16,8 kg

Front I/O Port

USB 3.1 Gen 1 Type-A x 2 ^[2]

Front buttons

Power On / Off, system reset

LED Indicators

Chassis

Power LED x 1: Blue
HDD Access x 1: Green
LAN LED x 2: Green

HDD Tray

HDD Power LED x 24: Yellow
HDD Access x 24: Blinking green

Dimension

442mm (W) x 175mm (H) x 660mm (D), 51.1 liters
17.4” (W) x 6.9” (H) x 26” (D), 51.1 liters

Extra

^[1] Please ensure the mounting holes of your Mini Redundant PSU matches the mounting holes on the rear panel of RM43-324-RS (See below diagram)
^[2] RM43-324-RS’s USB internal cable is 800mm long, so if you are connecting an external enclosure to the USB3.1 port, we recommend using it with shorter cables to prevent performance loss.
