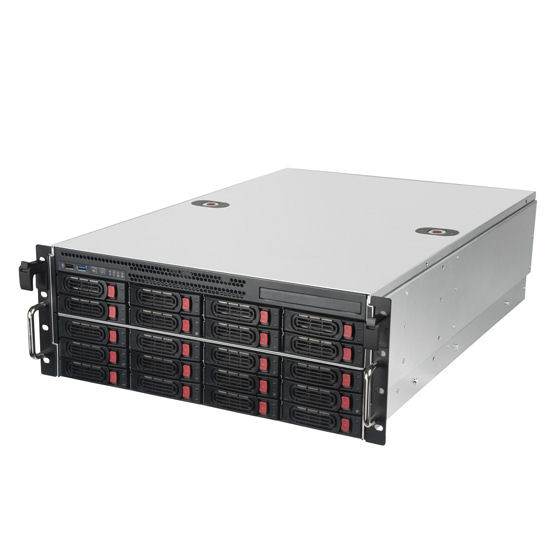

Silverstone SST-RM43-320-RS 4U 20Bay 2.5/3.5inch HDD/SSD Rackmount Storage Server Chassis

Price:

$979.00

MPN:

SST-RM43-320-RS

Brand:

SILVERSTONE

UPC:

844761024833

Shipping:

Calculated at checkout

Add to Wishlist

Product Description

￭ Backplane support for 20 port SAS / SATA drives and 12 Gb/s Mini-SAS HD SFF-8643 + SGPIO

￭ Supports twenty 2.5"/3.5" SAS/SATA HDD/SSD hot-swap trays

￭ Ball bearing sliding rails included for simple server rack integration

￭ Includes three 120mm x 38mm hot-swappable PWM fans

￭ Auto lock handle for convenient fixation of chassis into rack cabinet

￭ Supports ATX (PS2) / Mini Redundant PSUs*

￭ Supports E-ATX or SSI-EEB motherboards

￭ Supports 7 standard PCI / PCIe slots

￭ Independent drive status LED

Model No.	SST-RM43-320-RS
Chassis form factor	4U
Motherboard	SSI-EEB, SSI-CEB, Extended ATX, ATX, Micro-ATX, Mini-ITX
Drive Bay	External	3.5" hot-swap x 20 Slim optical drive x 1 (up to 12.7mm)
	Internal	2.5" x 2 (up to 15mm)
Cooling System	Front	--
	Rear	80mm x 2 fan slots
	Internal	Hot-swap 120 x 38mm PWM ball bearing fan x 3
Power Supply	ATX (PS2) / Mini Redundant*
Limitation of CPU cooler	148mm
Power connector on HDD backplane	4-Pin peripheral x 10
Expansion Slot	Standard profile PCI / PCIe x 7
Front I/O Port	USB 2.0 x 1, USB 3.1 Gen 1 Type-A x 1**
LED indicator	Chassis Power LED x 1: Blue HDD Access x 1: Green LAN LED x 2: Green HDD Tray HDD Power LED x 20: Yellow HDD Access x 20: Blinking green
Front buttons	Power On / Off, system reset
HDD backplane	20 ports SAS / SATA to Mini-SAS HD SFF-8643 x 5 with SGPIO
HDD Interface	SAS III / II / I, SATA III / II / I
Main metal thickness	1.0mm ~ 1.2mm
Net Weight	16.2 kg
Dimension	442mm (W) x 175mm (H) x 660mm (D), 51.1 liters 17.4" (W) x 6.89" (H) x 25.98" (D), 51.1 liters
Rail Sliding
Max. supported weight	80 kg
Rack cabinet mounting hole distance (Min. ~ Max.)	663mm ~ 915mm ±3mm
Net weight	2.48kg
