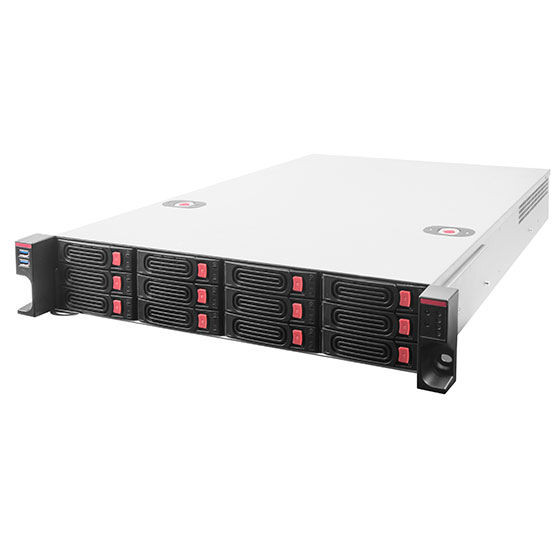

Silverstone SST-RM22-312 2U 12Bay Mini-SAS HD SFF-8643 2.5/3.5inch HDD/SSD Rackmount Storage

Price:

$599.00

MPN:

SST-RM22-312

Brand:

SILVERSTONE

UPC:

844761021177

Availability: Ships in 2 business days

Shipping:

Calculated at checkout

Add to Wishlist

Product Description

￭ Backplane support for 12 port SAS / SATA drives and 12 Gb/s Mini-SAS HD SFF-8643 + SGPIO

￭ Supports twelve 2.5"/3.5" SAS/SATA HDD/SSD hot-swap trays

￭ Includes three 80mm x 38mm hot-swappable PWM fans

￭ Independent drive status LED

￭ Supports E-ATX or SSI-EEB motherboards

￭ Supports 7 low profile PCI / PCIe slots

Model No.	SST-RM22-312
Chassis form factor	2U
Motherboard	E-ATX / SSI-EEB (12" x 13")
Drive Bay	External	3.5" hot-swap x 12
	Internal	--
Cooling System	Hot-swap 80 x 38mm PWM fan x 3
Power Supply	2U single or 2U redundant (not included)
Limitation of CPU cooler	68mm
Power connector on HDD backplane	4-Pin peripheral x 2
Expansion Slot	Low profile PCI / PCIe x 7
Front I/O Port	USB 3.1 Gen 1 Type-A x 2 **
Front buttons	Power On / Off, system reset
Indicators	Chassis Power LED x 1: Blue HDD Access x 1: Green LAN LED x 2: Green HDD Tray HDD Power LED x 12: Yellow HDD Access x 12: Blinking green
HDD backplane	12 ports SAS / SATA to Mini-SAS HD SFF-8643 x 3 with SGPIO
HDD Interface	SAS III / II / I, SATA III / II / I
Main metal thickness	1.2mm
Net Weight	10.9 kg
Dimension	430mm (W) x 88.5mm (H) x 660mm (D), 25.1 Liters 16.93" (W) x 3.48" (H) x 25.98" (D), 25.1 Liters
