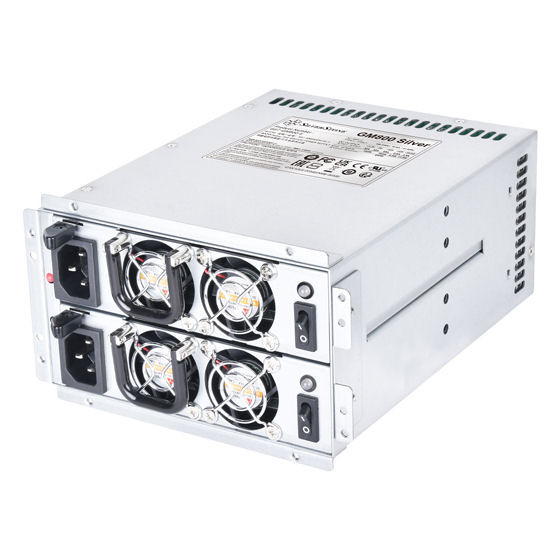

Silverstone SST-GM800-S GM800 Cybenetics Silver 800W Mini Redundant Power Supply

Price:
 $799.00
MPN:
 SST-GM800-S
Brand:
UPC:
 844761023775
Availability: Ships in 2 business days
Ships in two business days
Shipping:
 Calculated at checkout


Click the button below to add the Silverstone SST-GM800-S GM800 Cybenetics Silver 800W Mini Redundant Power Supply to your wish list.

SHARE

Product Description

■ 800+800W 24 hours and well-working performance at 50℃ fully continuous power output

■ 1+1 redundant configuration

■ Japanese electrolytic capacitors

■ Hot swappable design

■ Convenient pull-out handle bars

■ Industry-leading reliability

Product No.
SST-GM800-S
Max. DC Output
800W
Power density
623W per liter
Load Range
Output
+3.3V +5V +12V +5VSB -12V
Max.(Amps)
32A 32A 65A 3.5A 0.8A
Min.(Amps)
1.0A 1.0A 1.0A 0.1A 0A
Range (%)
±5% ±5% ±5% ±5% ±10%
Line Reg.(%)
±1% ±1% ±1% ±1% ±1%
Ripple(mVp-p)
60mV 60mV 120mV 60mV 120mV
Model (safety certification)
SST-MR0800FCSI-A
Color
Silver
Combined +3.3V & +5V
190W
Combined +12V
780W
Input Voltage
90 ~ 264V
Input Frequency Range
47Hz ~ 63Hz
PFC
Active PFC (PF>0.9 at full load)
Efficiency
≥85% & <87% overall efficiency with a single modular power supply
MTBF
100,000 hours
Operating temperature
0°C ~ 50°C
Protection
Over current protection
Over voltage protection
Over temperature protection
Short circuit protection
Connectors
1 x 24 / 20-Pin motherboard connector
2 x 8 / 4-Pin EPS / ATX 12V connectors
2 x 8 / 6-Pin PCIe connectors
3 x SATA connectors
6 x 4-Pin Peripheral connectors
1 x 4-Pin Floppy connector
1 x 2-Pin +5V TTL signal connector
Cooling System
40mm DC fans
Form factor
Noise Level
51 dBA
Dimension
150mm (W) x 86mm (H) x 199mm (D)
5.91" (W) x 3.39" (H) x 7.83" (D) (Housing without bracket)
150mm (W) x 86mm (H) x 212mm (D)
5.91" (W) x 3.39" (H) x 8.35" (D) (Housing with bracket, without handle)
140mm (W) x 40mm (H) x 175mm (D)
5.51" (W) x 1.57" (H) x 6.89" (D) (Module only without handle)
LED indicator
Power Supply ConditionPower System StatusModule Status
No AC power to all PSU OFF OFF OFF
AC present / only standby output on Red Orange OFF
Power supply DC output ON and OK Green Green Orange
Power supply failure Red / OFF Green Blinking OFF
Weight
4.25 kg
Certification
Cybenetics Silver
