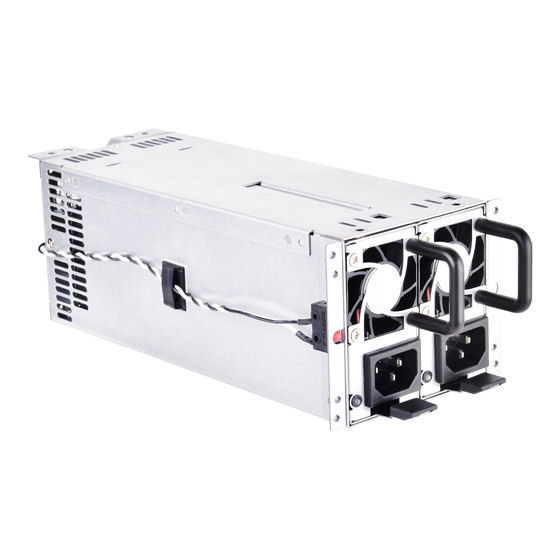

Silverstone SST-GM800-2UG-V2 GM800 Cybenetics Gold 800W 2U Redundant Power Supply

Price:

$899.00

MPN:

SST-GM800-2UG-V2

Brand:

SILVERSTONE

UPC:

844761023799

Availability: Ships in 2 business days

Ships in two business days

Shipping:

Calculated at checkout

Add to Wishlist

Product Description

￭ 800+800W 24hour and well working performance at 45℃ fully continuous power output

￭ Cybenetics Gold Certified

￭ Japanese electrolytic capacitors

￭ 2U redundant form factor with 84mm(W) x 82mm(H) x 217mm(D)

￭ Active PFC (full range)

￭ Hot swappable design

￭ Convenient pull-out handle bars

￭ Industry-leading reliability

￭ Supports PMBus 1.2

Product No.

SST-GM800-2UG V2

Max. DC Output

800W

Power density

1070W per liter

Load Range

Output	+3.3V	+5V	+12V	+5VSB	-12V
Max.(Amps)	25A	25A	66.5A	3.5A	0.8A
Min.(Amps)	1.0A	1.0A	1.0A	0.1A	0A
Range (%)	±5%	±5%	±5%	±5%	±5%
Line Reg.(%)	±1%	±1%	±1%	±1%	±1%
Ripple(mVp-p)	50mV	50mV	120mV	50mV	120mV

Model (safety certification)

SST-2R0800FCGD-A

Color

Silver

Combined +3.3V & +5V

170W

Combined +12V

798W

Input Voltage

90 ~ 264 Vrms

Input Frequency Range

47Hz ~ 63Hz

PFC

Active PFC (PF>0.9 at full load)

Efficiency

≥87% & <89% overall efficiency with single modular power supply

MTBF

>100,000 hours

Operating temperature

0°C ~ 45°C

Protection

Over Current Protection
Over Voltage Protection
Short Circuit Protection
Over Temperature Protection

Connectors

1 x 24 / 20-Pin motherboard connector
2 x 8 / 4-Pin EPS / ATX 12V connectors
2 x 8 / 6-Pin PCIe connectors
6 x SATA connectors
9 x 4-Pin Peripheral connectors
1 x 4-Pin Floppy connector
1 x 2-Pin TTL connector
1 x 2-Pin PW1 connector
1 x 2-Pin PW2 connector
1 x PM Bus connector

Cooling System

40mm PWM fans

Form factor

1+1 2U redundant form factor

Noise Level

62.5 dBA maximum

Fan speed

22,000 RPM

Dimension

102mm (W) x 82mm (H) x 231mm (D) (Housing with bracket, without handle)
84mm (W) x 82mm (H) x 217mm (D) (Housing without bracket)
78mm (W) X 39mm (H) X 190mm (D) (Module only without handle)

4.02" (W) x 3.23" (H) x 9.09" (D) (Housing with bracket, without handle)
3.31" (W) x 3.23" (H) x 8.54" (D) (Housing without bracket)
3.07" (W) x 1.54" (H) x 7.48" (D) (Module only without handle)

LED indicator

Modular Status	Indicator
No AC power to all PSU	OFF
AC present / only standby output on	Red
Power supply DC output ON and OK	Green
Power supply failure	Red

Weight

3.16 kg
