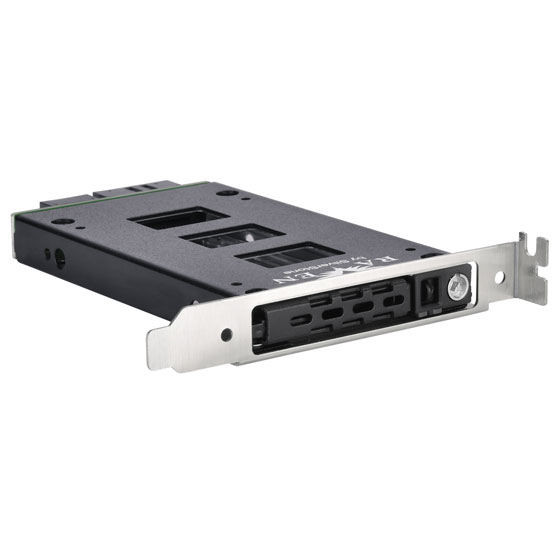

Silverstone SST-EXB02 2.5inch SAS/SATA HDD to PCIe/PCI Slot Adapter

Availability: Ships in 2 business days
 Calculated at checkout

Click the button below to add the Silverstone SST-EXB02 2.5inch SAS/SATA HDD to PCIe/PCI Slot Adapter to your wish list.


Product Description

■ Utilize an expansion card slot to add a removable 2.5" SAS/SATA hard drive bay

■ Offer great performance of up to SAS 12Gbit/s or SATA 6Gbit/s

■ Fits a 2.5" SAS/SATA drive into a rear full profile expansion card slot

■ Key lock design for extra security

■ Support up to 9.5mm 2.5" HDD/SSD

■ Removable drive Tray design for easy to screw the HDD and maintenance


Model No.
Color Black
Material Metal
HDD Drive Support SATA 6 Gbit/s, SATA 3 Gbit/s, SATA 1.5 Gbit/s
SAS 12 Gbit/s, SAS 6 Gbit/s, SAS 3 Gbit/s
Drive support 2.5" SAS*/SATA HDD/SSD up to 9.5mm
Transfer rate Up to 12 Gbit/s** or 6 Gbit/s (dependent on drive and host speed)
Host interface 7 Pin SATA connector x 1
Power connector SATA 15 Pin x 1
LED indicator Power On: Green
HDD Access: Orange blinking
Drive door security Triangle key lock design
Number of key 2
Environment Operating temperature : 0℃~65℃ (32℉~149℉)
Storage temperature : -10℃~70℃ (14℉~158℉)
Operating humidity: 10%~90% non-condensing
Storage humidity : 5%~90% non-condensing
Net weight 200g
Dimension 120.5mm (W) x 21.5mm (H) x 137.3mm (D)
4.74" (W) x 0.85" (H) x 5.41" (D)
