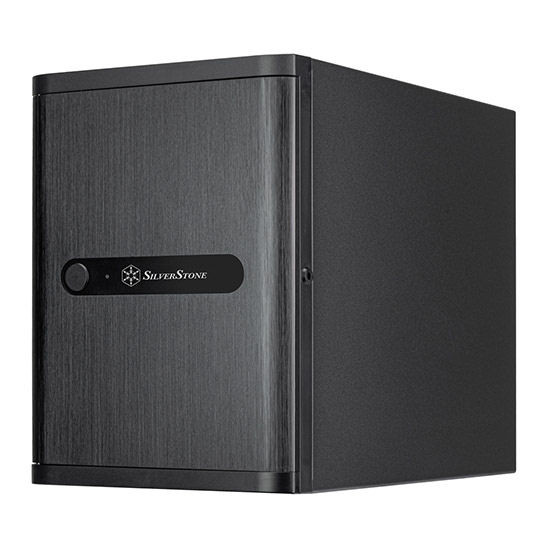

Silverstone SST-CS240 4-Bay U.2 Tri-Mode Hot-Swap High-Performance Mini-ITX NAS Chassis

Price:
 $339.99
MPN:
 SST-CS240
Brand:
UPC:
 844761029753
Availability: Ships in 2 business days
.
Shipping:
 Calculated at checkout


Add to Wishlist

Click the button below to add the Silverstone SST-CS240 4-Bay U.2 Tri-Mode Hot-Swap High-Performance Mini-ITX NAS Chassis to your wish list.

SHARE
Pin It

Product Description

  • Supports 4 hot-swappable 2.5" U.2 NVMe / SAS / SATA tri-mode SSDs
  • Backplane with SlimSAS 8i connector, supporting PCIe 4.0
  • Supports Deep Mini-ITX, Mini-DTX motherboards
  • Pre-installed 3 × 120mm fans
  • Supports graphics cards up to 300mm, with integrated GPU support bracket
  • Supports CPU coolers up to 182mm in height
  • Front I/O includes 1 × USB Type-C, 2 × USB 3.0, and 1 × combo audio jack
Model No.
SST-CS240
Motherboard
Deep mini-ITX,Mini-DTX, Mini-ITX
Material
Aluminum front door, plastic front panel, steel
Drive Support
External
  • 4 × 2.5" NVMe U.2 (SFF-8639) / SAS / SATA SSDs (15mm thickness), hot-swappable
Internal
  • 1 × 3.5" or 2 × 2.5" drives (15mm thickness)
Cooling system
Rear
  • 1 x 120mm
    (1 × 120mm black fan pre-installed)
Side
  • 2 x 120mm or 3 x 80mm
    (2 × 120mm black fan pre-installed)
Radiator support
Rear
  • 120mm
Limitation of CPU cooler
182mm
Expansion Slot
2
Limitation of expansion card
Length
  • 300mm
Width
  • 168mm
Power Supply
SFX/SFX-L
Limitation of PSU
140mm
Front I/O Port
USB Type-C x 1
USB 3.0 x 2
Combo audio x 1
LED Indicators
Chassis
  • Power LED x 1: Blue
    HDD Access x 1: Red
HDD Tray
  • HDD Access : Blue blinking
Dimension
211mm (W) x 285mm (H) x 360mm (D), 21.65 Liters
8.31" (W) × 11.22" (H) × 14.17" (D), 21.65 Liters

Other Details

MPN:
SST-CS240
