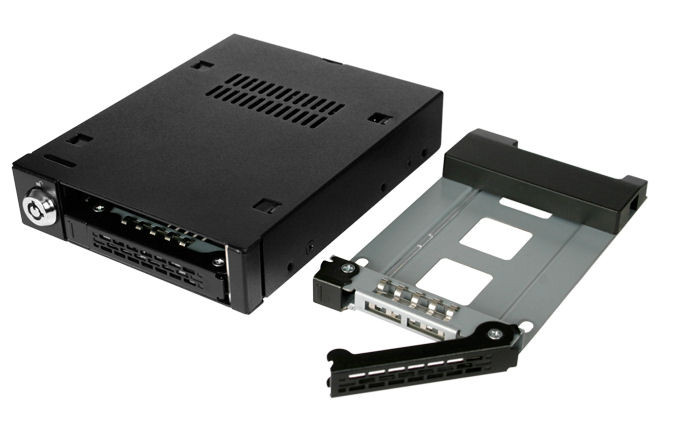

* Fits 2 x 7mm to 9.5mm 2.5” SATA drives/ SSD’s in a 3.5” floppy drive bay.
* Full Metal construction, perfect for rugged applications.
* Multi-Flow Technology (MFT) - provides excellent passive cooling.
* Anti-Vibration Technology (AVT) - creates a safe environment for hard drives or SSDs.
* Active Power Technology (APT) - individual led only powers up if there is drive installed in each bay.
* EMI Grounding – protects hard drives from electrical damage.
* Eagle-hook lock system & 2-segment safeguard key lock keeps drives secure within the enclosure.
* Removable tray system for easy maintenance.
* Supports SATA 6Gbps and hot swap.
* Single SATA 15 Pin to power entire device.
|
|
Host Interface :
|
7 pin SATA x 2
|
|
Drive Fit :
|
2.5" SATA I/II/III SSD or HDD (9.5mm thickness)
|
|
Drive Bay :
|
3.5" floppy drive bay
|
|
Transfer Rate :
|
Up to 6 Gb/sec. (depending on hard drive speed)
|
|
Insert& Extract connection Via :
|
Direct hard drive SATA connection
|
|
|
Device Power :
|
15 pin SATA power x 1
|
|
Drive Cooling :
|
Airflow vents with metal heat dissipation
|
|
Power Indicator :
|
Solid Green LED (Power On)
|
|
HDD Access Indicator :
|
Flashing Amber LED
|
|
Dimension (L x W x H) :
|
133 x 101.2 x 25.4mm
|
|
