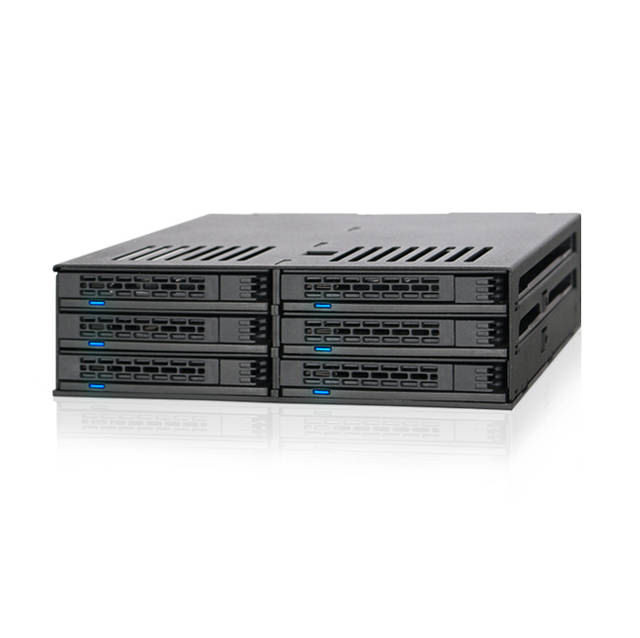

ICY DOCK MB326SP-B 6x2.5 inch SAS/SATA HDD/SSD Tool-less Hot Swap Mobile Rack

Availability: Ships in 2 business days
 Calculated at checkout

Click the button below to add the ICY DOCK MB326SP-B 6x2.5 inch SAS/SATA HDD/SSD Tool-less Hot Swap Mobile Rack to your wish list.


Product Description

  • Mfr Part Number: MB326SP-B
  • Features:Support Drive Size: 2.5" SSD / HDD
    • Supports up to 6x 2.5" SATA HDD/SSD into a single 5.25" bay
    • Support SATA III 6Gbps
    • Hot-swappable bays for quick drive installation
    • Accommodates 2.5" drives with 5mm, 7mm & 9.5mm height
    • Active Power Technology (APT) - only powers up if there is drive installed in the drive bay
    • Removable ExpressTray system for tool-less, easy installation comparable to tray-less designs
    • Optional bottom mounted screw holes for increased stability
    • Blue indicator LED provided for each bay
    • Dual 40mm fan for drive cooling
    • 3 pin fan headers to support many aftermarket fan upgrades
    • 2x 15pin SATA power connection powers all 6 drives
    • Locking latch design for both 7 pin SATA connector and 15 pin power adapter
    • Fan speed control for HIGH, LOW, and AUTO (smart cooling) settings
    • Metal case with heavy duty ABS tray and door latch
    • Designed for power users and system builder applications, mainly space saving and hot swap usage and for 2.5" HDD or SSD
  • Compatible Drive Type: SATA
  • Number of Drives: 6
  • Max Drive Height: 9.5mm
  • Drive Bays: 1x external 5.25" drive bay
  • Host Interface: 6x SATA 7pin
  • Power Input: 2x 15 pin SATA power connector
  • Transfer Rate: Up to 6Gbps (Depending on hard drive speed)
  • Support HDD Capacity: No Limitation
  • Drive Cooling: 2x 40mm fan
  • RAID Function: N/A
  • Structure / Material: Metal & plastic
  • Support Hot-Swap: Yes
  • Drive Security: N/A
  • RAID Status LED Indicator: N/A
  • Drive Activity LED Indication: Drive power - solid green; HDD access - flashing green
  • SATA Connector Insertion Rate: 10,000
  • Compliance: CE, RoHS, REACH
  • Color: Black
  • Dimensions (WxLxH): 145.8 x 146.5 x 41.3 mm
