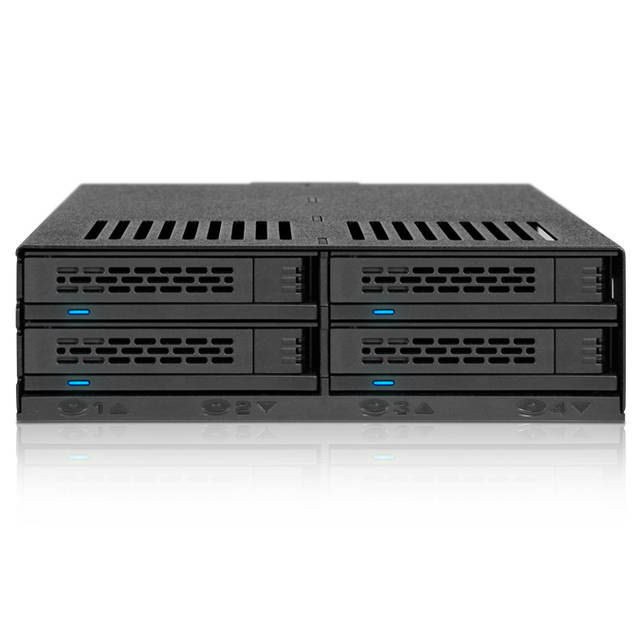

ICY DOCK MB324SP-1B 4x2.5 inch SAS/SATA HDD/SSD Tool-less Hot Swap Mobile Rack

Price:

$99.99

MPN:

MB324SP-1B

Brand:

ICY DOCK

UPC:

884826509929

Condition:

NEW

Availability: Ships in 2 business days

Shipping:

Calculated at checkout

Add to Wishlist

Product Description

•	Supports up to 4 x 2.5" SATA/SAS HDDs or SSDs into a single 5.25" bay

•	Compatible with SATA 6Gbps or SAS 3.0 12Gbps (Single channel)

•	Hot-swappable bays for quick and convenient drive replacement

•	Accommodates 2.5" drives with 5mm, 7mm, 9.5mm, and 12.5mm Height

•	Active Power Technology (APT) - only powers up if there is drive installed in the drive bay

•	ExpressTray system: tool-less, removable trays designed for easy installation while maintaining the stability of tray-based designs

•	Optional bottom-mounted screw holes for enhanced drive stability

•	Individual blue LED indicators for each bay

•	User-upgradeable 40mm fan for effective drive cooling

•	Supports both 2-pin and 3-pin fan connectors for aftermarket fan upgrades

•	Single 15-pin SATA power connector powers all four drives

•	Locking latch design for both 7-pin SATA connector and 15-pin power connectors to ensure secure connections

•	Three-speed fan control: High / Low / Off

•	Durable metal enclosure with heavy-duty ABS trays and door latches

•	Ideal for power users, system builders, and applications requiring space-efficient 2.5" hot-swap storage solutions

Model Number：	MB324SP-1B
Color：	Black
Support Drive Size：	2.5" SSD / HDD
Compatible Drive Type：	SATA / single channel SAS (SAS host required)
Number of Drives：	4
Max Drive Height：	12.5mm
Drive Bay：	1 x 5.25" half height drive bay
Host Interface：	4 x SATA 7pin
Power Input：	1 x 15 pin SATA power connector
Transfer Rate：	SATA 3.0 up to 6Gbps / SAS 3.0 up to 12Gbps
Support HDD Capacity：	No limitation
Drive Cooling：	1 x 40mm fan
RAID Function：	N/A
Structure / Material：	Metal with partial plastic
Support Hot-Swap：	Yes
Drive Security ：	N/A
Product Dimension (L x W x H)：	140.5 x 145.8 x 41.3mm
Product Net Weight：	440g
Package Gross Weight：	516g
Drive Activity LED Indication：	Drive power: solid blue; Drive access: flashing blue
Package Contents：	1 - Device, 1 - user manual, 18 - screw
SATA Connector Insertion Rate：	10,000
Humidity：	5%~65% RH
Operating Temperature：	0°C to 60°C (32°F to 140°F)
Storage Temperature：	-35°C to 70°C (-31°F to 158°F)
Compliance：	CE, UKCA, RoHS, REACH
