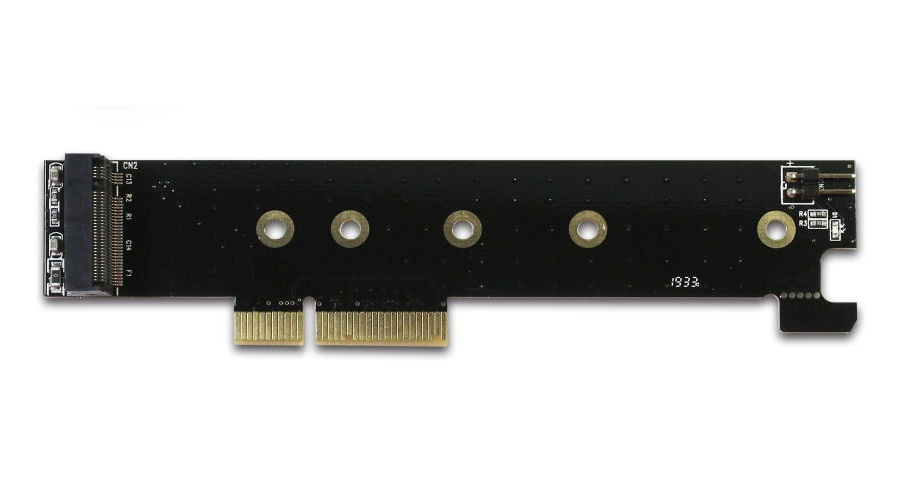

Vantec UGT-M2PC130 M.2 NVMe PCIe X4 Low Profile Adapter 110 Length Support

Price:
 $29.99
MPN:
 UGT-M2PC130
Brand:
UPC:
 844767023151
Availability: Ships in 2 business days
.
Shipping:
 Calculated at checkout


Add to Wishlist

Click the button below to add the Vantec UGT-M2PC130 M.2 NVMe PCIe X4 Low Profile Adapter 110 Length Support to your wish list.

SHARE
Pin It

Product Description



  • Ultra-Low Profile height to fit into 1U Rack Mount
  • Design for Low Profile Chassis with no Bracket needed for PCIe slot
  • Support Extra Long M.2 NVMe 110mm, 80, 60, 42, 30
  • Fast PCI Express v4.0/v3.0 Specs to NVMe v4.0 via PCIe x4, x8, or x16 slot
  • Full-Length heat sink and heat management for NVMe module
  • Support Booting with Latest UEFI System Boards and OS
  • Support backward compatible with PCI Express v2.0 / v1.0
  • Supports system boards  with PCIe x4,x8,x16 slots
  • Uses minimum power from PCIe 3.3V for better power management
M.2 Type Support:    NVMe SSD using M Key only
M.2 size:    Length support 22x110, 22x80, 22x60, 22x42, 22x30 mm
Internal Interface:    1 x M.2 (NGFF), M Key
PCIe Interface:    PCIe v4.0/v3.0/v2.0/v1.0 x4 (4 lanes)
Power:    PCIe Bus powered (3.3V)
Dimensions:    5.1 x 1.2 x 0.4 inches / 130 x 31 x 10 mm

System Requirements:
  • Available system board PCIe x4 or x8 or x16 slot, preferred x16 with card slot lock
  • OS support like Windows® 7/8/8.1/10, or Linux
  • For booting, requires UEFI System Board and latest OS

Other Details

MPN:
UGT-M2PC130
