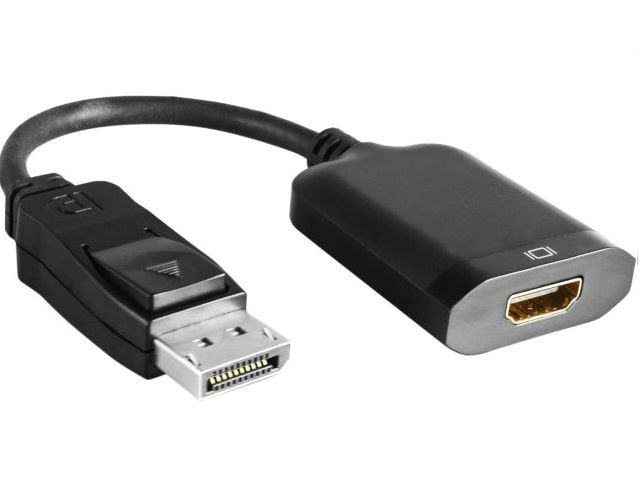

Vantec CB-HD20DP12 VLink DisplayPort 1.2 to HDMI 2.0 UHD 4K at 60Hz Active Adapter

Type

HDMI to DP

Color

Black

Specifications

Supported Resolutions: 4096x2160 (4K UHD)
Display Modes: Primary, Extended or Mirror (depend on graphic card capability)
Adapter Interface: DisplayPort™ (Male), HDMI™ (Female)
Power Supply: Self-powered, no external power nedded
Material: ABS Plastic
Dimensions: 49 x 37 x 12 mm
OS Supported: Windows 10, 8.1, 7 32&64bit; Apple OS X 10.11, 10.10, 10.9, 10.8

Connectors

Connector A

DisplayPort™ 1.1a/1.2a/1.3 (1.2 above preferred for max capability)

Connector B

HDMI™ 1.1/ 1.2/ 1.3a/ 1.4a/ 2.0 (Version 2.0 preferred for max capability)

Audio

Yes

Features

Features

Supports UHD resolution up to 4096 x 2160 at 60Hz, 8-bit color
Compliant to DisplayPort™ Specification 1.2
Compliant to HDMI™ Specification 2.0
Supports HDCP 1.4 and HDCP 2.2 content protection
Support 3D video up to 1080P@120Hz
Color format: support RGB up to 12 bpc; YCbCr 4:4:4/4:2:2/4:2:0 up to 12bpc
Audio input : support up to 8 channels of LPCM at 192kHZ sample rate and 24 Bit audio sample size, compressed audio and high bite rate
DisplayPort™: support 1.1a/1.2a/1.3; 1/2/4 lanes at 1.62/2.7/5.4 Gbps
Supports DisplayPort™ Spread Spectrum Clocking
Supports 4K Nvidia GTX series and ATI Graphics
