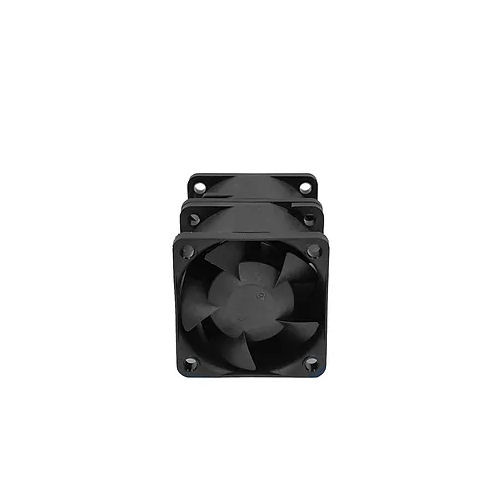

Top Motor DF124056BM-PWM 40mm x 40mm x 56mm Dual Ball Bearing Fan,4Pin PWM

Model No.

DF124056BM-PWM

Voltage (V)

12

Speed (RPM)

In: 13000±10%

Out: 12000±10%

Bearing

2-Balls

Current (Amp)

1.0

Watts (W)

12

Air flow (CFM)

Static Pressure (mm/H2O)

72.00

Noise (dBA)

60.49

Dimensions

40 x 40 x 56 mm

Frame

PBT UL94V-0 (Black GP)

Impeller

PBT UL94V-0 (Black GP)

Operating Temperature

- 10 °C ~ + 65 °C (65 %RH)

Storage Temperature

- 30 °C ~ + 70 °C (65 %RH)

MTBF (Operating temp. 40°C)

Dual Ball Bearing: 70,000 hours

Connector

4 Pin Connector with 4 Wires
