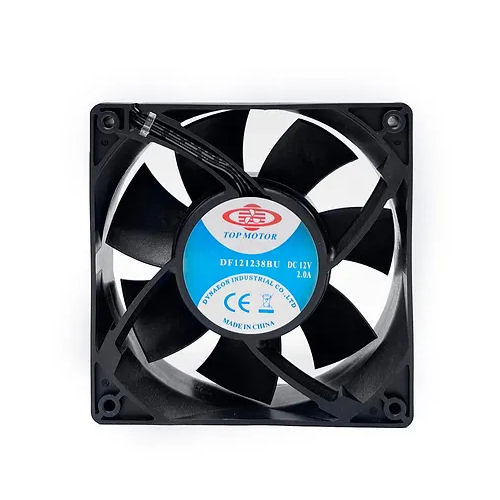

Top Motor DF1212038BU-PWMG 120mm x 120mm x 38mm Ball Bearing Fan, 4Pin PWM

Price:
 $16.99
MPN:
 DF1212038BU-PWMG
Brand:
Condition:
 NEW
Availability: Ships in 2 business days
.
Shipping:
 Calculated at checkout


Add to Wishlist

Click the button below to add the Top Motor DF1212038BU-PWMG 120mm x 120mm x 38mm Ball Bearing Fan, 4Pin PWM to your wish list.

SHARE
Pin It

Product Description

Model No.

DF121238BU
Voltage DC

Voltage (V)

12

Speed (RPM)

4000

Bearing

2-Balls

Current (Amp)

2.0

Watts (W)

24.0

Air flow (CFM)

180.31

Static Pressure (mm/H2O)

15.69

Noise (dBA)

52.98
RoHS Compliance

Dimensions

120 x 120 x 38 mm

Frame

PBT UL94V-0 (Black GP)

Impeller

PBT UL94V-0 (Black GP)

Operating Temperature

- 10 °C ~ + 65 °C (65 %RH)

Storage Temperature

- 30 °C ~ + 70 °C (65 %RH)

MTBF (Operating temp. 40°C)

Dual Ball Bearing: 70,000 hours
Connector Types 4 Pin PWM

Other Details

MPN:
DF1212038BU-PWMG
