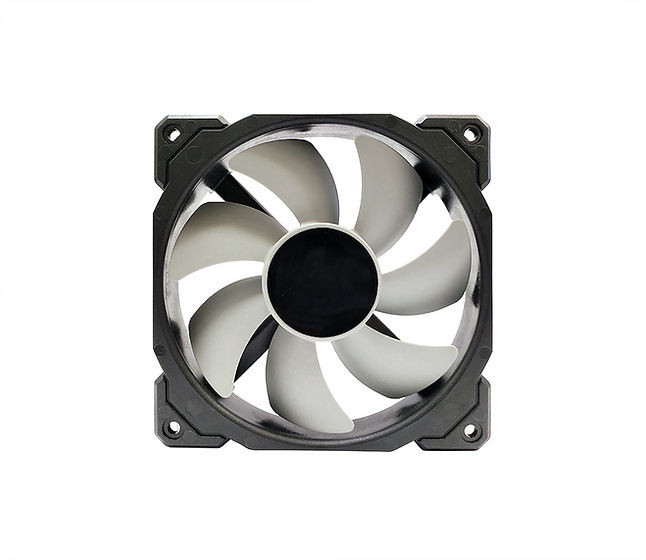

Top Motor DF1212025SM-PWMG-S 120mm x 120mm x 25mm VAPO Bearing PWM Fan, 4Pin PWM

Model No.

DF1212025SM-PWMG-S

Dimensions

120mm x 120mm x 25mm

Voltage

12 DC

Frame

Thermoplastic PBT of UL 94V-0

Impeller

Thermoplastic PBT of UL 94V-0

Weight

160 grams

Operating Temperature

- 10 °C ~ + 70 °C

Speed (RPM)

2400±10% RPM in Free Air At Rated Voltage

Current (Amp)

0.190 / Max. 0.219 A

Watts (W)

2.28 / Max. 2.63 W

Air flow (CFM)

71.1 / Min. 63.2 CFM

Static Pressure (mm/H2O)

0.16 / Min. 0.12 inch- H2O

Noise (dBA)

38.9 / Max. 42.0 dBA

Storage Temperature

- 40 °C ~ + 70 °C

Life Expectancy

60,000 Hours at 40 °C with 15~65% RH.

Bearing

VAPO Bearing System

Connector Types

4 Pin PWM

RoHS

Compliance
