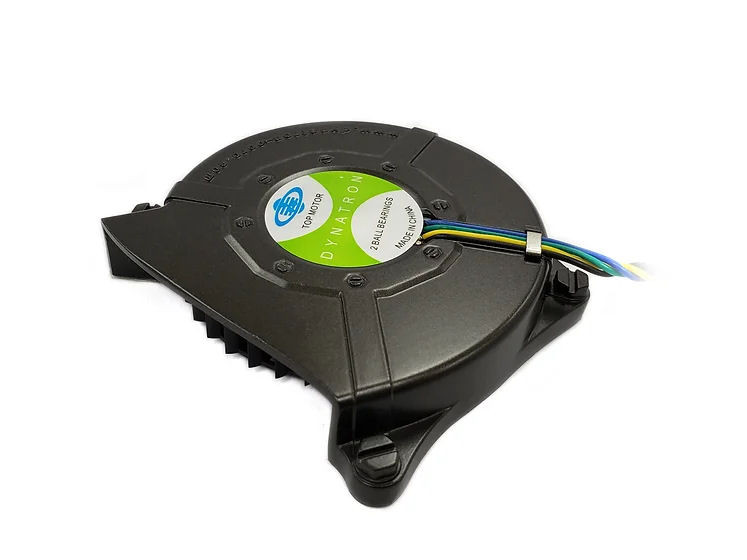

Top Motor DB127515BM-PWMG 12V 75mm x 75mm x 15mm Aluminum DC Blower, 4Pin PWM

Price:
 $17.99
MPN:
 DB127515BM-PWMG
Brand:
Condition:
 NEW
Availability: Ships in 2 business days
.
Shipping:
 Calculated at checkout


Add to Wishlist

Click the button below to add the Top Motor DB127515BM-PWMG 12V 75mm x 75mm x 15mm Aluminum DC Blower, 4Pin PWM to your wish list.

SHARE
Pin It

Product Description

Dimensions

75mm x 75mm x 15mm

Frame

Aluminum

Impeller

PBT UL94V-0 (Black)

Weight

70±5 grams

Operating Temperature

- 10 °C ~ + 65 °C (65 %RH)

Storage Temperature

- 30 °C ~ + 70 °C (65 %RH)

MTBF (Operating temp. 40°C)

Dual Ball Bearing: 70,000 hours
Connector Types 4 Pin PWM



Model No.

DB127515BM
Voltage DC

Voltage (V)

12

Speed (RPM)

4000±10%

Bearing

2-Balls

Current (Amp)

0.4

Watts (W)

4.8

Air flow (CFM)

11.9

Static Pressure (mm/H2O)

23.6

Noise (dBA)

46.1
RoHS Compliance

Other Details

MPN:
DB127515BM-PWMG
