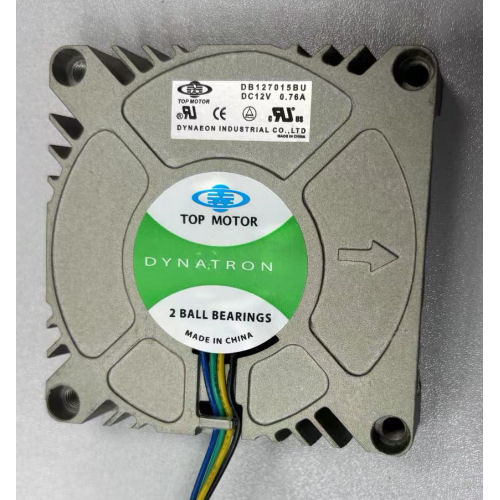

Top Motor DB127015BH-PWMG/A 70mm x 70mm x 15mm Aluminum DC Blower (No Bottom Cover)

Price:
 $14.75
MPN:
 DB127015BH-PWMG/A
Brand:
Condition:
 NEW
Availability: Ships in 2 business days
Ships in 2 business days
Shipping:
 Calculated at checkout


Add to Wishlist

Click the button below to add the Top Motor DB127015BH-PWMG/A 70mm x 70mm x 15mm Aluminum DC Blower (No Bottom Cover) to your wish list.

SHARE
Pin It

Product Description

Dimensions

70mm x 70mm x 15mm

Frame

Aluminum (GP)

Impeller

PBT UL94V-0 (Black GP)

Weight

77±5grams

Operating Temperature

- 10 °C ~ + 65 °C (65 %RH)

Storage Temperature

- 30 °C ~ + 70 °C (65 %RH)

Life expectancy (Operating temp. 40°C)

Dual Ball Bearing: 70,000 hours
Connector Types 4 Pin PWM



Model No.

DB127015BH -PWM
Voltage DC

Voltage (V)

12

Speed (RPM)

5000±10%

Bearing

2-Balls

Current (Amp)

0.46

Watts (W)

5.52

Air flow (CFM)

9.40

Static Pressure (mm/H2O)

26.40
Noise (dBA) 48.00
RoHS Compliance

Other Details

MPN:
DB120716BH
