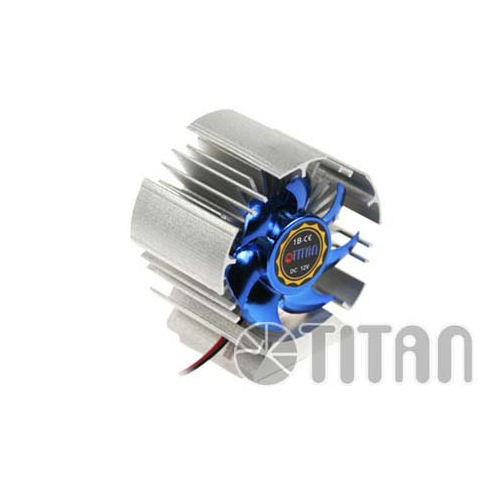

Titan TTC-CSC31TZ Northbridge Chipset Cooler

While chipset coolers becomes a popular and important upgrade for computer enthusiasts, finding a suitable thermal solution for chipset coolers is one of main missions to TITAN. It is clearly an issue as you see motherboards now need larger and more efficient cooling solutions. A more powerful chipset cooler could increase system stability allowing higher overclocking potential. TTC-CSC31TZ(RB), the Steel Heart, is constructed out of pure aluminum and the iron heart-like fin design originating from the movie- Iron Man, enables effective heat dissipation from CPU and quick temperature drop-off.

Unique Iron heart-like (Iron Man) and aluminum extrusion-style fins for the optimal heat dissipation and a stable computing operation
Easy installation with clips which support multi-pitch positions of Northbridge chips
A 5 cm low noise fan for rapid heat dissipation and a stable operation

Cooler Dimension: Outline Dimension: 66X 60 X 40mm MM
Speed: Rated Speed: 5000 +/- 10% RPM RPM
Fan Dimension: 50 x 50 x 10 mm
Rated Voltage 12V DC
Rated Current: 0.12A
Power Consumption: 1.44 W
Airflow: 8.84 CFM
Static Pressure: 0.11 InchH2O
Noise Level: <25 dBA
Rotation Direction: Clockwise
Bearing Type: Z-AXIS EBARING
Life Time: 60,000 Hours
