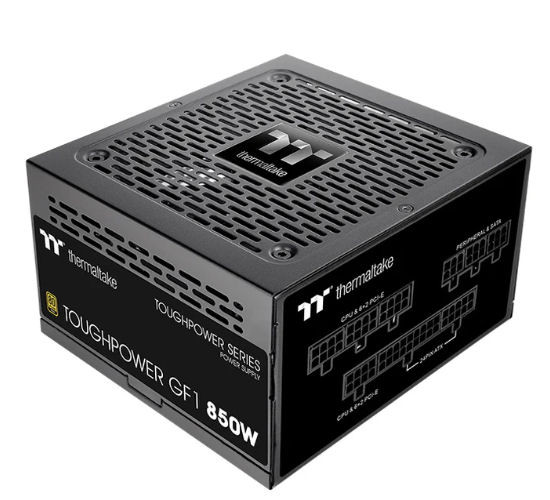

80 PLUS Gold certified fully modular PSU with Fluid Bearing fan.
Model | TPD-850AH2FLG |
---|---|
Type | Digital |
Watts | 850W |
Max Output Capacity | 850W |
Dimensions | 150mm(W)x86mm(H)x140mm(D) |
PFC (Power Factor Correction) | Active PFC |
Power Good Signal | 100-150 msec |
Hold Up Time | > 17msec |
Input Current | 15A-8A |
Input Frequency Range | 50Hz/60Hz |
Input Voltage | 100-240V~ |
Operating Temperture | +5°C to +40°C |
Operating Humidity | 20% to 85% |
Storage Temperture | -40°C to +55°C |
Storage Humidity | 10% to 95% |
Cooling System | 12cm FDB Fan |
Efficiency | Meet 80 PLUS® Gold at 115Vac input. |
MTBF | 100 |
Safety Approval | FCC/cTUVus |
