P/N | PS-SPW-0700NNFAWU-W |
---|---|

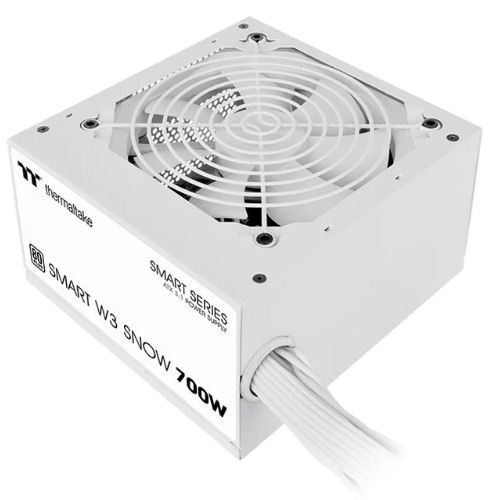

Model | SP3-700AH2NLW |
Type | Analog |
Watts | 700W |
Max Output Capacity | 700W |
Color | White |
Dimensions | 150mm(W)x86mm(H)x140mm(D) |
PFC (Power Factor Correction) | Active PFC |
Power Good Signal | 100-150 msec |
Hold Up Time | > 17msec at 80% load |
Input Current | 12A - 6A |
Input Frequency Range | 50Hz/60Hz |
Input Voltage | 100-240V~ |
Operating Temperture | 5°C to + 40°C |
Operating Humidity | 20% to 85% |
Storage Temperture | -40°C to + 55°C |
Storage Humidity | 10% to 95% |
Cooling System | 12cm FDB Fan |
Efficiency | Meet 80 PLUS® at 115Vac input. |
MTBF | 100 |
Safety Approval | CB/FCC/cTUVus/ICES/UKCA/CE/LVD/RCM |
PCI-E 6+2PIN | 2 |
Protection | OCP/OVP/UVP/OPP/OTP/SCP |
