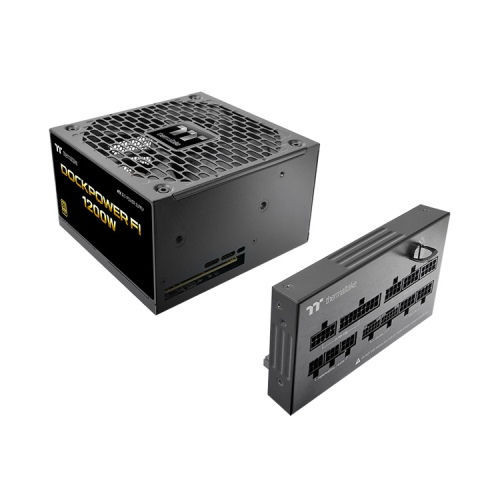

Thermaltake PS-DCP-1200FNFAGU-2 Dockpower FI 1200W ATX 3.1 Full Modular 80+ Gold Power Supply

Price:

$174.99

MPN:

PS-DCP-1200FNFAGU-2

Brand:

THERMALTAKE

UPC:

840480311261

Availability: Ships in 2 business days

Shipping:

Calculated at checkout

Add to Wishlist

Product Description

DockPower FI redefines PC power with a docking architecture that provides installation flexibility, simplifies cable management, and offers possibilities for future upgrades.

• Docking Power Architecture – Separate the PSU main unit from the Dock Module for easier access in tight spaces.

• Pre-Route, Then Dock – Install and manage cables first, then dock and lock the power unit into place.

• Upgrade Without Rewiring – Keep the Dock Module and cables installed when replacing the power unit.

• 30μ Gold-Plated Dock Connection – Durable high-current contacts paired with a secure D-ring locking mechanism.

• Builder-Friendly Cabling – Native 12V-2x6 with a colored H++ connector crown and low-profile modular cables for easier routing.

Max. Output Capacity	1200W
Color	Black
Dimension ( W / H / D )	150mm(W)x86mm(H)x160mm(D)
PFC (Power Factor Correction)	Active PFC
Power Good Signal	100-250 msec
Hold Up Time	> 17msec at 80% load
Input Current	15 - 10A
Input Frequency Range	50Hz-60Hz
Input Voltage	100-240Vac
OPERATING TEMPERATURE	0°C to + 40°C
Operating Humidity	5% to 85%,non-condensing
Storage Temperature	-40°C to + 70°C
Storage Humidity	5% to 95%, non-condensing
COOLING SYSTEM	135mm Hydraulic bearing fan
Efficiency	Meet 80 PLUS® Gold at 115Vac input.
MTBF	100,000 hrs minimum
Safety Approval	CE/UKCA/ICES/TUV/LVD/RCM/CB/FCC/cTUVus/BSMI/CCC/BIS/S-MARK/EAC
PCI-E 6+2pin	5
PCIe 12+4pin	2(600w)
