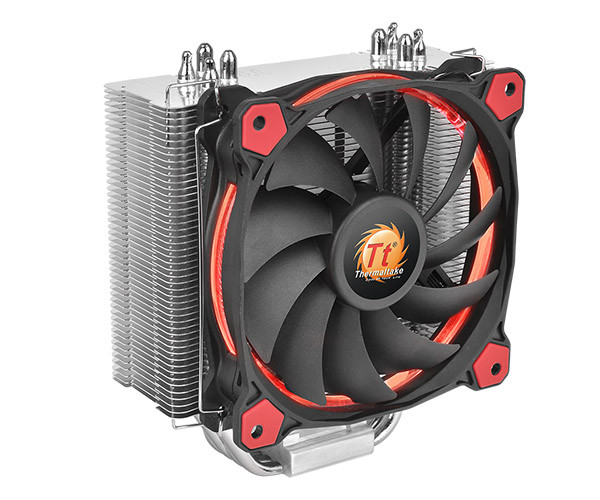

The latest Riing Silent 12 CPU cooler is with PWM function, designed for use with high-end RAM and motherboards.
A 120mm fan fitted to enhance the airflow produces impressive cooling performance with an optimized 11 fan-blade design. Hydraulic bearings for silent operation guarantee ultra-low noise. The patented LED ring maintains color and brightness uniformity, and the lighting effect is visible from all sides and angles.
P/N | CL-P022-AL12RE-A |
Compatibility | Intel LGA 2011-3/2011/1366/1156/1155/1151/1150/775 AMD FM2/FM1/AM3+/AM3/AM2+/AM2 |
Heatsink Material | Aluminum Fins Copper Heatpipes |
Heatpipe | Φ6mm x 4 pcs |
Dimension | 159 x 140 x 74 mm (H x W x L) |
Fan Dimension | 120 x 120 x 25 mm(L xW x H) |
Fan quantity | 1pcs |
Fan Speed | 500~1400 RPM 300~700 RPM (with LNC ) |
Rated Voltage | 12V |
Start Voltage | 9.0 V |
Rated Current | 0.21 A |
Power Input | 2.52 W |
Air Flow | 53 CFM |
Air Pressure | 1.23 mm-H2O |
Acoustical Noise | 18 ±1 dBA 13 ±1 dBA (with LNC) |
Life time/Fan Life time | 40,000 hours |
Pin Connector | 4 pin PWM + LNC (Low-Noise Cable) 50% fan speed and 29% noise can be reduced |
Cooling Power | 150 W |
Weight | 825 g |
