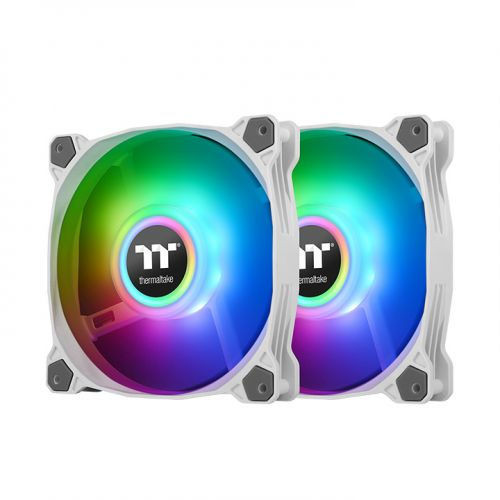

140mm PWM controlled fan with a 16.8 million color addressable LED ring that supports 5V RGB capable motherboards.
P/N | CL-F098-PL14SW-B |
---|---|
FAN DIMENSION | 140 x 140 x 25 mm |
INTERFACE | Fan 2510-4P , LED 5V RGB Header |
STARTED VOLTAGE | 9.0 V |
RATED CURRENT | Fan 0.17 A , LED 0.28 A (Fan*1) |
RATED VOLTAGE | 12 V & 5V |
POWER INPUT | 12V – 5.76 W , 5V – 2.8 W (Fan*2) |
FAN SPEED | PWM 500~1500 R.P.M |
MAX. AIR PRESSURE | 2.24 mm-H2O |
MAX AIR FLOW | 82.23 CFM |
NOISE | 33.5 dB-A |
BEARING TYPE | Hydraulic Bearing |
LIFE EXPECTATION | 40,000 hrs, 25℃ |
WEIGHT | 209 g (Fan*1) |
