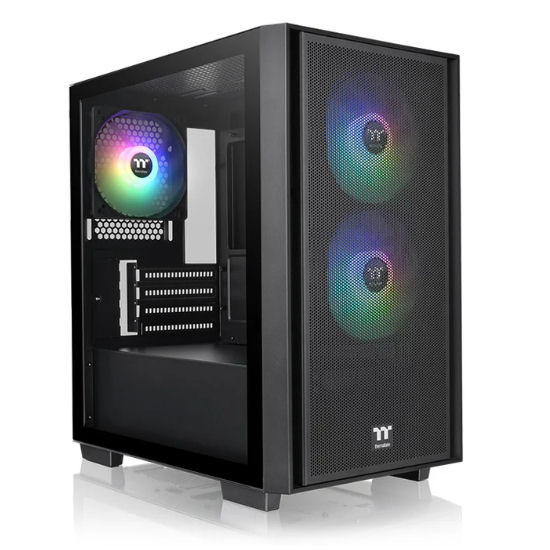

Versa H16 TG ARGB Micro Tower Chassis is an m-ATX case with a tempered class left panel and a mesh front panel, and comes with three hydraulic bearing 120mm ARGB Lite Fans at the front and the rear.
Case Type | Micro Tower |
---|---|
Dimensions | 404 x 216 x 378 mm (15.9 x 8.5 x 14.9 inch) |
Side Panel | 3mm Tempered Glass x 1 |
Color | Black |
Material | SPCC |
Cooling System | Front(intake): 120 x 120 x 25 mm ARGB Lite White fan (1000rpm, 22.3 dBA) x 2 Rear(Exhaust): 120 x 120 x 25 mm ARGB Lite White fan (1000rpm, 22.3 dBA) x 1 |
Drive Bays | 2 x 3.5”, 2 x 2.5” or 1 x 3.5”, 3x 2.5” |
Expansion Slots | 4 |
Motherboard | 6.7” x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX) |
I/O Port | USB 3.0 x 2, USB 2.0 x 1, microphone x 1, earphone x 1 |
PSU | Standard PS2 PSU (optional) |
Fan Support | Front: 2 x 120mm, 1 x 120mm 2 x 140mm, 1 x 140mm Top: 2 x 120mm, 1 x 120mm, 2 x 140mm, 1 x 140mm Rear: 1 x 120mm |
Radiator Support | Front: 1 x 240mm, 1 x 120mm 1 x 280mm, 1 x 140mm Top: 1 x 240mm, 1 x 120mm Rear: 1 x 120mm |
Clearance | CPU cooler height limitation: 175mm VGA length limitation: 330mm PSU length limitation: 170mm |
