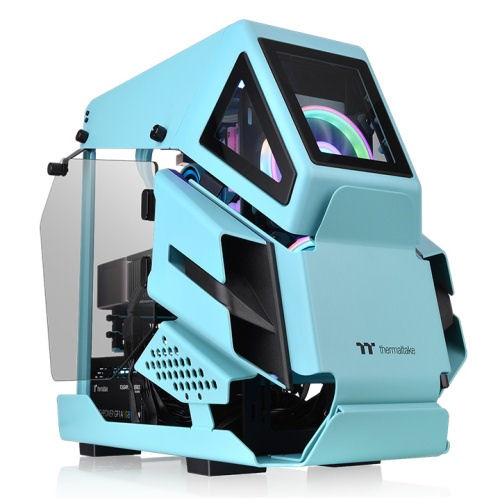

The AH T200 helicopter-inspired open frame micro chassis comes in special color edition- Turquoise. It features two 4mm tempered glass panels on the left and right sides and can support motherboards up to a Micro ATX.
P/N | CA-1R4-00SBWN-00 |
---|---|
SERIES | AH Series |
MODEL | AH T200 Turquoise |
CASE TYPE | Micro Case |
DIMENSION (H X W X D) | 444.2 x 282 x 551.5 mm (17.5 x 11.1 x 21.7 inch) |
NET WEIGHT | 10.8 kg / 23.8 lbs. |
SIDE PANEL | Tempered Glass x 2 |
COLOR | Black & Turquoise |
MATERIAL | SPCC |
COOLING SYSTEM | N/A |
DRIVE BAYS -ACCESSIBLE -HIDDEN |
2 x 3.5" or 3 x 2.5” (3.5” HDD thickness limitation: 22mm) |
EXPANSION SLOTS | 5 |
MOTHERBOARDS | 6.7” x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX) |
I/O PORT | USB 3.1 (Gen 2) Type C x 1, USB 3.0 x 2, HD Audio x 1 |
PSU | Standard PS2 PSU (optional) |
FAN SUPPORT | Front: 2 x 120mm or 1 x 120mm 2 x 140mm or 1 x 140mm Top: 2 x 120mm or 1 x 120mm 2 x 140mm or 1 x 140mm |
RADIATOR SUPPORT | Front: 1 x 240mm or 1 x 120mm 1 x 280mm or 1 x 140mm |
CLEARANCE | CPU cooler max height: 150mm VGA max length: 320mm PSU max length: 180mm 3.5” HDD thickness limitation: 22mm |
