Thermaltake CA-1P8-00M1WN-00 Level 20 RS ARGB Mid Tower Chassis

Price:
 $139.99
MPN:
 CA-1P8-00M1WN-00
Brand:
Availability: Ships in 2 business days
.
Shipping:
 Calculated at checkout


Add to Wishlist

Click the button below to add the Thermaltake CA-1P8-00M1WN-00 Level 20 RS ARGB Mid Tower Chassis to your wish list.

SHARE
Pin It

Product Description

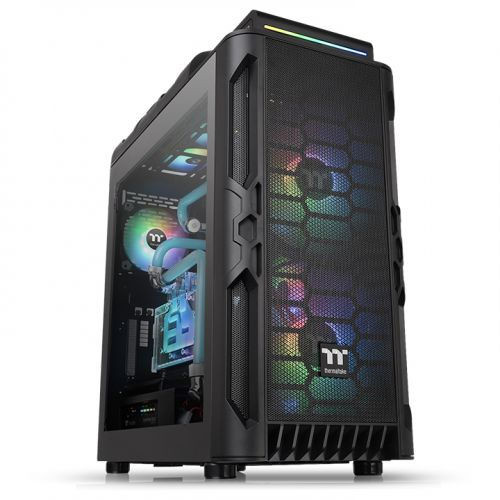

Level 20 RS ARGB is an ATX mid tower chassis that comes with two 4mm thick tempered glass windows and two preinstalled 200mm 5V ARGB front fans and one 120mm standard rear fan



P/N CA-1P8-00M1WN-00
SERIES Level 20
MODEL Level 20 RS ARGB
CASE TYPE Middle Tower
DIMENSION (H X W X D) 524 x 240.8 x 553 mm
(20.62 x 9.4 x 21.77 inch)
NET WEIGHT 12.23 kg / 26.96 lbs.
SIDE PANEL 4mm Tempered Glass x 2
COLOR Exterior & Interior: Black
MATERIAL SPCC
COOLING SYSTEM Front (intake) :
200 x 200 x 30mm Addressable RGB fan
(600rpm, 29.2dBA) x 2
Rear (exhaust) :
120 x 120 x 25 mm fan
(1000rpm, 16 dBA)
DRIVE BAYS
-ACCESSIBLE
-HIDDEN
2.5” x 2 or 3.5”x 2 (HDD Rack)
2.5”x 1(HDD Bracket) ; 2.5” x 2 or 3.5” x 1(HDD Bracket)
EXPANSION SLOTS 8
MOTHERBOARDS 6.7” x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX), 12” x 9.6” (ATX)
I/O PORT USB 3.0 x 2, USB 2.0 x 2, HD Audio x 1, RGB Button x 1
PSU Standard PS2 PSU (optional)
FAN SUPPORT Front:
2 x 200mm or 1 x 200mm
3 x 120mm or 2 x 120mm or 1 x 120mm
3 x 140mm or 2 x 140mm or 1 x 140mm
Top:
2 x 200mm or 1 x 200mm
3 x 120mm or 2 x 120mm or 1 x 120mm
2 x 140mm or 1 x 140mm
Rear:
1 x 120mm
RADIATOR SUPPORT Front:
1 x 360mm or 1 x 240mm or 1 x 120mm
1 x 420mm or 1 x 280mm or 1 x 140mm
Top:
1 x 360mm or 1 x 240mm or 1 x 120mm
1 x 280mm or 1 x 140mm
Rear:
1 x 120mm
MB Right:
1 x Pacific DP100-D5 Plus Distro(Without HDD Rack)
CLEARANCE CPU cooler height limitation: 172mm
VGA length limitation: 282mm(With HDD Rack)
　　　　　　　　　 400mm(Without HDD Rack)
PSU length limitation: 220mm
