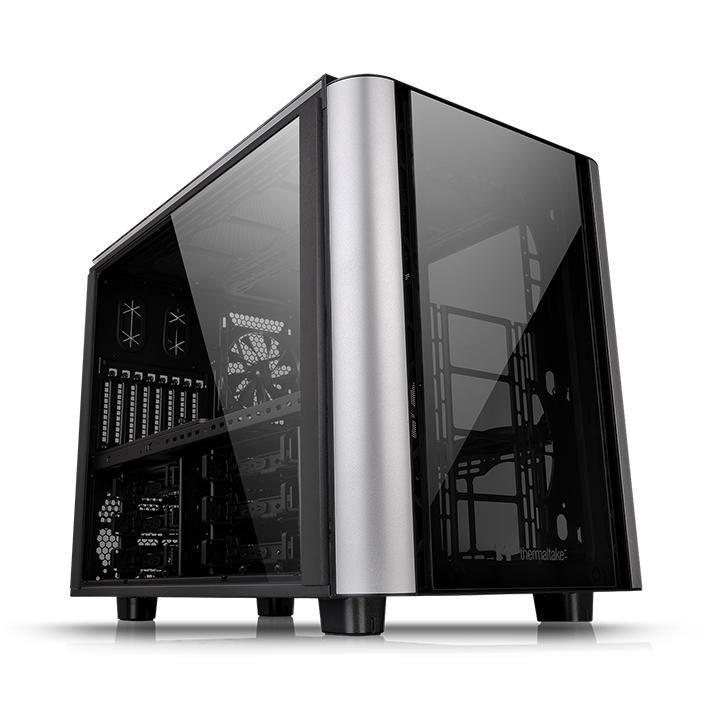

Model | Level 20 XT |
P/N | CA-1L1-00F1WN-00 |
Case Type | E-ATX Cube Case |
Dimension (H x W x D) | 515 x 394 x 623 mm (20.3 x 15.5 x 24.5 inch) |
Net Weight | 20.4 kg / 44.97 lb |
Side Panel | 4mm Tempered Glass x 4(Left & Right & Front & Top) |
Color | Exterior & Interior : Black |
Material | SPCC |
Cooling System | Rear (exhaust) : 140 x 140 x 25 mm fan (1000rpm, 16dBA) |
Drive Bays -Accessible -Hidden |
6 x 3.5’’ or 2.5’’ (HDD Cage) 1 x 3.5’’, 2 x 2.5’’ (M/B Tray) |
Expansion Slots | 8 |
Motherboards | 6.7” x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX), 12” x 9.6” (ATX), 12” x 13” (Extend ATX) |
I/O Port | USB 2.0 x2, USB 3.0 x2, HD Audio x 1, Type-C x1 |
PSU | Standard PS2 PSU (optional) |
Fan Support | Front: 3 x 120mm, 2 x 140mm, 2 x 200mm Top: 8 x 120mm, 6 x 140mm, 2 x 200mm Rear: 2 x 120mm or 2 x 140mm Bottom: 3 x 120mm Left / Right Side: 4 x 120mm, 3 x 140mm |
Radiator Support | Front: 1 x 120mm or 1 x 240mm or 1 x 360mm 1 x 140mm or 1 x 280mm Top: 2 x 120mm or 2 x 240mm or 2 x 360mm or 2 x 480mm 2 x 140mm or 2 x 280mm or 2 x 420mm Rear: 1 x 120mm or or 1 x 140mm Left / Right Side: 1 x 120mm or 1 x 240mm or 1 x 360mm or 1 x 480mm 1 x 140mm or 1 x 280mm or 1 x 420mm Bottom: 1 x 120mm or 1 x 240mm or 1 x 360mm or 1 x 480mm 1 x 140mm or 1 x 280mm or 1 x 420mm |
Clearance | CPU cooler height limitation: 250mm VGA length limitation: 400mm(with ODD cage) 590mm(without ODD cage) PSU length limitation: 220mm (With Bottom Fan) |
