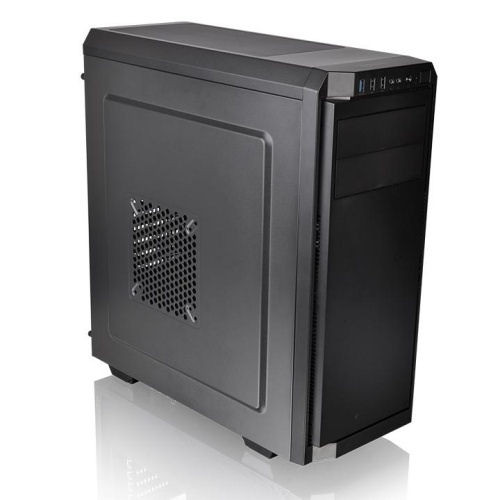

ATX mid-tower chassis with one preinstalled 120mm fan and a perforated side panel
P/N | CA-1K7-00M1NN-01 |
---|---|
SERIES | V Series |
CASE TYPE | Middle tower |
DIMENSION (H X W X D) | 410 x 190 x 470 mm (16.1 x 7.5 x 18.5 inch) |
NET WEIGHT | 5.0 kg / 11.02 lb |
SIDE PANEL | Perforated |
COLOR | Exterior & Interior : Black |
MATERIAL | SPCC |
COOLING SYSTEM | Rear (exhaust) : 120 x 120 x 25 mm fan (1000rpm, 16dBA) |
DRIVE BAYS -ACCESSIBLE -HIDDEN |
5.25” x 2 ; 2.5” x 2 2 x 2.5“ or 3.5”(HDD Cage) |
EXPANSION SLOTS | 7 |
MOTHERBOARDS | 6.7” x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX), 12” x 9.6” (ATX) |
I/O PORT | USB 3.0 x 1, USB 2.0 x 2, HD Audio x 1 |
PSU | Standard PS2 PSU (optional) |
FAN SUPPORT | Front: 3 x 120mm, 2 x 140mm Top: 2 x 120mm, 2 x 140mm Rear: 1 x 120mm Side:(Perforated): 1 x 120mm, 1 x 140mm |
RADIATOR SUPPORT | Front: 1 x 360mm, 1 x 280mm Rear: 1 x 120mm |
CLEARANCE | CPU cooler height limitation: 160mm VGA length limitation: 400mm PSU length limitation: 170mm |
