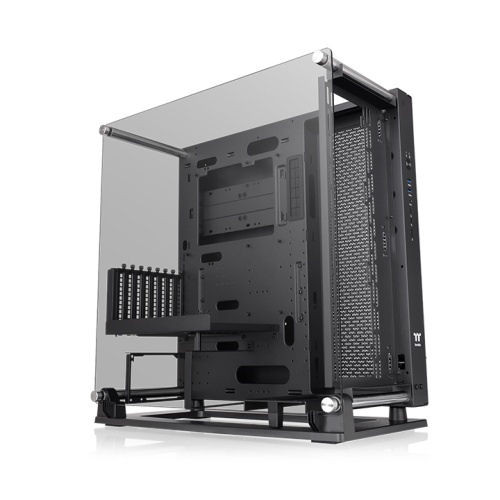

Thermaltake CA-1G4-00M1WN-09 Core P3 TG Pro Open Frame Chassis

Price:

$179.00

MPN:

CA-1G4-00M1WN-09

Brand:

THERMALTAKE

Availability: Ships in 2 business days

Shipping:

Calculated at checkout

Add to Wishlist

Product Description

The new open frame chassis of the iconic Core P series, the Core P3 TG Pro, is an upgraded version of our beloved Core P3 TG. The chassis includes an additional fan bracket, modernized I/O ports, redesigned base and an improvement on the M/B side layout which provides plenty of possibilities for advanced hardware.

SERIES	Core
CASE TYPE	Mid Tower
DIMENSION (H X W X D)	535 x 268 x 500 mm (21.06 x 10.55 x 19.69 inch)
SIDE PANEL	4mm Tempered Glass x 1
MATERIAL	SPCC
EXPANSION SLOTS	8
MOTHERBOARDS	6.7” x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX), 12” x 9.6” (ATX), 12” x 10.5” (E-ATX)
I/O PORT	USB 3.2 (Gen 2) Type-C x 1, USB 3.0 x 2, HD Audio x 1
PSU	Standard PS2 PSU (optional)
FAN SUPPORT	Right (M/B Side): 3 x 120mm, 2 x 120mm, 1 x 120mm 3 x 140mm, 2 x 140mm, 1 x 140mm Bracket (front or top): 3 x 120mm, 2 x 120mm, 1 x 120mm 3 x 140mm, 2 x 140mm, 1 x 140mm
RADIATOR SUPPORT	Right (M/B Side): 1 x 360mm, 1 x 240mm, 1 x 120mm 1 x 420mm, 1 x 280mm, 1 x 140mm Bracket (front or top): 1 x 360mm, 1 x 240mm, 1 x 120mm 1 x 420mm, 1 x 280mm, 1 x 140mm
CLEARANCE	CPU cooler height limitation: 180mm VGA length limitation: 330mm(With reservoir) 450mm(Without reservoir) PSU length limitation: 200mm
