Sorry but this item is currently unavailable.
Please check back at a later stage.
Case Type | E-ATX Cube Case |
P/N | CA-1D8-00F6WN-00 |
Dimension (H x W x D) | 502 x 380 x 640 mm (19.8 x 15 x 25.2 inch) |
Net Weight | 17 kg / 37.5 lb |
Side Panel | Transparent Window |
Color | Exterior & Interior : White |
Material | SPCC |
Cooling System | Front (intake) : 200 x 200 x 30 mm fan (800rpm, 13dBA) Rear (exhaust) : 120 x 120 x 25 mm Turbo fan (1000rpm, 16dBA) |
Drive Bays | 3 x 5.25’’ -Accessible : 6 x 3.5’’ or 2.5’’ (HDD Cage) -Hidden : 1 x 3.5’’, 2 x 2.5’’ (M/B Tray) |
Expansion Slots | 8 |
Motherboards | 6.7” x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX), 12” x 9.6” (ATX), 12” x 13” (Extend ATX) |
I/O Ports | USB 3.0 x 4, HD Audio x 1 |
PSU | Standard PS2 PSU (optional) |
LCS Upgradable | Supports 1/2”¡¢3/8”¡¢1/4” water tube |
Fan Support | Front: 3 x 120mm 2 x 140mm 2 x 200mm Top: 8 x 120mm 6 x 140mm 2 x 200mm Rear: 2 x 120mm or 2 x 140mm Bottom: 3 x 120mm Left / Right Side: 4 x 120mm 3 x 140mm |

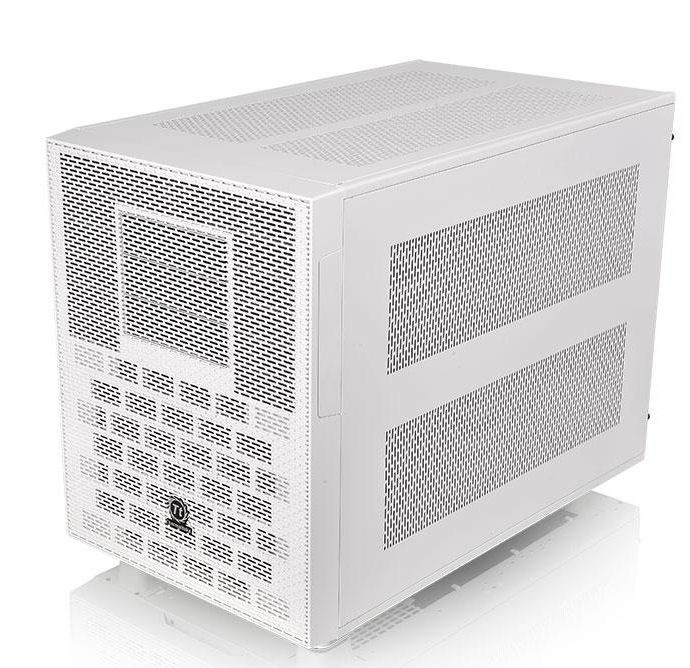

Model | Core X9 Snow Edition |
Radiator Support | Front: 1 x 120mm or 1 x 240mm or 1 x 360mm 1 x 140mm or 1 x 280mm Top: 2 x 120mm or 2 x 240mm or 2 x 360mm or 2 x 480mm 2 x 140mm or 2 x 280mm or 2 x 420mm Rear: 1 x 120mm or or 1 x 140mm Left / Right Side: 1 x 120mm or 1 x 240mm or 1 x 360mm or 1 x 480mm 1 x 140mm or 1 x 280mm or 1 x 420mm Bottom: 1 x 120mm or 1 x 240mm or 1 x 360mm or 1 x 480mm 1 x 140mm or 1 x 280mm or 1 x 420mm |
Clearance | CPU cooler height limitation: 250mm VGA length limitation: 400mm(with ODD cage) 590mm(without ODD cage) PSU length limitation: 220mm (With Bottom Fan) |
