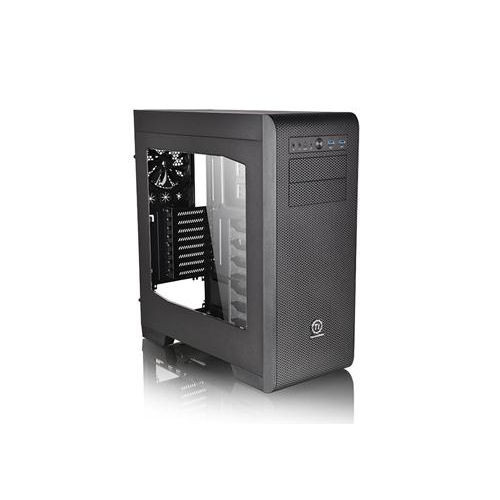

Model | Core V41 |
P/N | CA-1C7-00M1WN-00 |
Case Type | Mid Tower |
Dimension (H x W x D) | 526 x 232 x 491 mm (20.7 x 9.1 x 19.3 inch) |
Net Weight | 8 kg |
Side Panel | Transparent Window |
Color | Exterior & Interior : Black |
Material | SPCC |
Cooling System | Front (intake) : 120 x 120 x 25 mm Turbo fan (1000rpm, 16dBA) Rear (exhaust) : 120 x 120 x 25 mm Turbo fan (1000rpm, 16dBA) |
Drive Bays | Accessible : 2 x 5.25’’, 1 x 3.5’’ (Converted from one 5.25” drive bay) Hidden : 6 x 3.5’’ or 6 x 2.5’’ |
Expansion Slots | 8 |
Motherboards | 6.7” x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX), 12” x 9.6” (ATX) |
I/O Ports | USB 3.0 x 2, HD Audio x 1 |
PSU | Standard PS2 PSU (optional) |
LCS Upgradable | Supports 1/2”¡¢3/8”¡¢1/4” water tube |
Fan Support | Front: 1 x 120mm or 2 x 120mm 1 x 140mm or 2 x 140mm Top: 1 x 120mm or 2 x 120mm or 3 x 120mm 1 x 140mm or 2 x 140mm or 3 x 140mm 1 x 200mm or 2 x 200mm Rear: 1 x 120mm Bottom: 1 x 120mm or 2 x 120mm |
Radiator Support | Front: 1 x 120mm or 1 x 240mm or 1 x 360mm 1 x 140mm or 1 x 280mm Top: 1 x 120mm or 1 x 240mm or 1 x 360mm 1 x 140mm or 1 x 280mm Rear: 1 x 120mm |
Clearance | CPU cooler height limitation: 170mm VGA length limitation: 275mm(with HDD rack) 410mm(without HDD rack) PSU length limitation: 180mm (With Bottom Fan) 200mm (Without Bottom Fan) |
