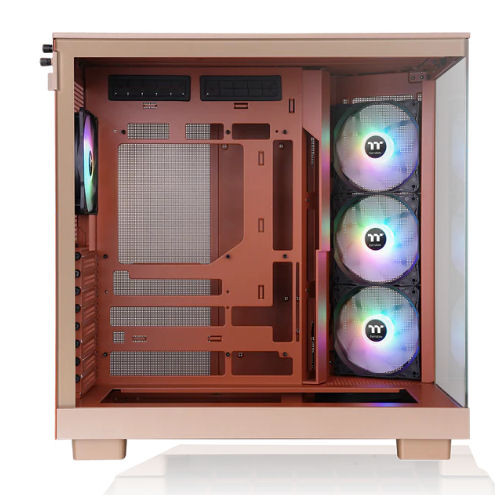

The View 380 XL TG ARGB Gravel Sand was designed with both performance and of course stunning views in mind. Sporting a fish tank dual chamber design, angled side intake with a curved mesh, recessed bottom fan mounts, and hinged storage doors in the rear compartment. On top of that there is room for radiators up to 360mm in length, GPUs up to 420mm in length and enough space to accommodate up to ten 120mm fans.
P/N | CA-11E-00MGWN-00 |
---|---|
Model | View 380 XL TG ARGB |
Series | View |
Dimensions | 471 x 288 x 469 mm (18.54 x 11.34 x 18.46 inch) |
Side Panel | 4mm Tempered Glass x 2 |
Color | Bumblebee |
Material | SPCC |
Cooling System | Right(intake): 120 x 120 x 25 mm ARGB Lite Reverse fan (1000rpm, 21.9 dBA) x 3 Rear(exhaust): 120 x 120 x 25 mm ARGB Lite fan (1000rpm, 22.3 dBA) x 1 |
Drive Bays | 1 x 3.5”, 2 x 2.5” or 3 x 2.5” |
Expansion Slots | 8 |
Motherboard | 6.7” x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX), 12” x 9.6” (ATX) |
I/O Port | USB 3.2 (Gen 2) Type-C x 1, USB 3.0 x 2, HD Audio x 1 |
PSU | Standard PS2 PSU (optional) |
Fan Support | Top: 3 x 120mm, 2 x 120mm, 1 x 120mm, 2 x 140mm, 1 x 140mm Right: 3 x 120mm, 2 x 120mm, 1 x 120mm Rear: 1 x 120mm Bottom: 3 x 120mm, 2 x 120mm, 1 x 120mm |
Radiator Support | Top: 1 x 360mm, 1 x 240mm, 1 x 120mm 1 x 280mm, 1 x 140mm Right: 1 x 360mm, 1 x 240mm, 1 x 120mm Rear: 1 x 120mm |
Clearance | CPU cooler max height: 160mm VGA max length: 420mm PSU max length: 180mm |
