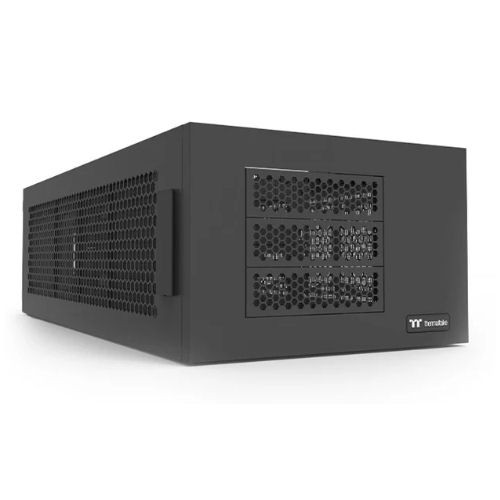

The AX100 is an add-on chamber that enhances the AX700 chassis by adding extra power, storage, and cooling options. It supports a standard PS2 PSU for additional power management and offers space for up to eight HDDs or SSDs. Additionally, the AX100 accommodates up to eight 120mm or 140mm fans and dual 560mm radiators on both sides for optimal thermal performance.
Model | AX100 |
---|---|
Series | AX Series |
Case Type | Pedestal |
Dimensions | 201 x 320 x 678.3 mm (7.91 x 12.60 x 26.71 inch) |
Side Panel | Steel |
Color | Black |
Material | SPCC |
Drive Bays | 8 x 3.5'' or 2.5'' (HDD Cage) |
PSU | Standard PS2 PSU (optional) |
Fan Support | Left Side: 4 x 120mm , 4 x 140mm Right Side: 4 x 120mm , 4 x 140mm |
Radiator Support | Left Side: 1 x 480mm (MAX), 1 x 560mm (MAX) Right Side: 1 x 480mm (MAX), 1 x 560mm (MAX) |
Clearance | PSU length limitation: 220mm (with two bottom fans) |
