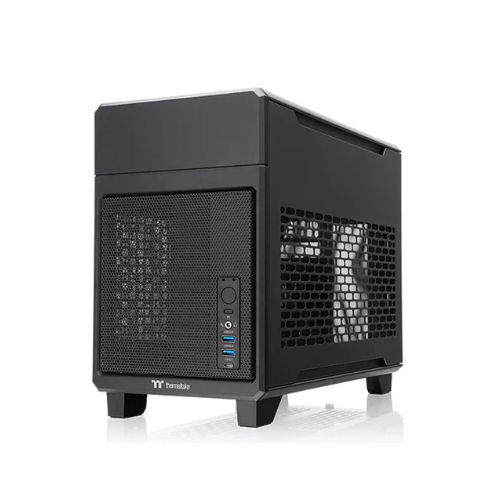

The TR100 Mini Tower Chassis is a compact, dual-chamber, Mini-ITX case that is designed for those who demand performance and portability. It supports a high-end graphics cards up to 360mm, an SFX power supply and features space for two 120mm or 140mm fans on the top, as well as room for a 280mm AIO cooler. Additionally, the separately sold suitcase allows users to carry the PC case and a complete gaming setup with them!
Series | TR100 |
---|---|
Case Type | Mini Case |
Dimensions | 294 x 179 x 391 mm (11.58 x 7.05 x 15.39 inch) |
Side Panel | Steel |
Material | SPCC |
Drive Bays | 2 x 2.5” or 1 x 2.5” |
Expansion Slots | 3 |
Motherboard | 6.7" x 6.7" (Mini ITX) |
I/O Port | USB 3.2 (Gen 2) Type-C x 1, USB 3.0 x 2, HD Audio x 1 |
PSU | SFX / SFX-L (optional) |
Fan Support | Top: 2 x 120mm, 1 x 120mm 2 x 140mm, 1 x 140mm |
Radiator Support | Top Side(AIO): 1 x 240mm, 1 x 120mm 1 x 280mm, 1 x 140mm |
Clearance | CPU cooler height limitation: 68mm VGA length limitation: 360mm VGA Width limitation: 70mm PSU length limitation: 130mm |
